Futaba CDR-8000L Battery

Manufacturer: Futaba Corporation
Model: CDR-8000L

AC/DC Input Compatible 600W MAX 16A Dual Balance Charger

Chargers for lithium, nickel-cadmium, nickel-metal hydride, and lead-acid batteries

Overview

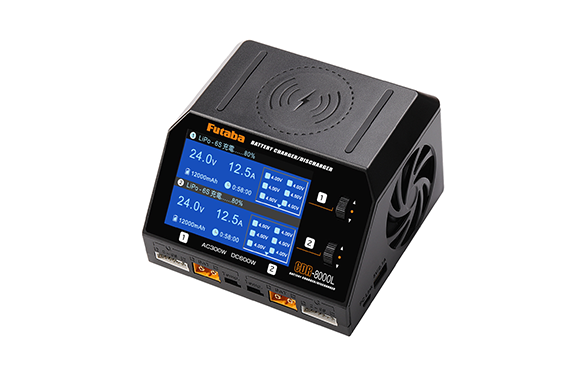

Meet the AC/DC MAX600W, MAX16A Dual Balance Charger. It accepts both AC and DC input, so you charge in more places with less hassle. It covers every RC genre—cars, drones, airplanes, and helicopters—and delivers enough punch for big models like F3A. Even on AC, it outputs up to 300 W, so you don’t need a separate stabilized power supply for large-aircraft packs.

Easy Operation

You run everything with two simple dials, and the interface guides you in six languages.

Convenient Charging Extras

Wireless phone charging: just set a compatible smartphone on the stand and it tops up automatically.
USB port: power your peripherals directly from the charger.

Key Specs (at a glance)

Input: AC / DC
Max power: 600 W total
Max current: 16 A
Mode: Dual balance charging

Important Notes

Japan-only: This product targets the Japanese market—do not use it overseas.
Safety first: Lithium polymer and similar batteries can be dangerous if you mishandle them. Always stay nearby and monitor the charger while it operates.

Functions and specifications

Input & Output

Input voltage: AC 100–120 V; DC 9.0–32.0 V
Output voltage: 0.1–30 V
Output current: 0.1–16 A × 2 channels
Output power: AC: 300 W total (CH1 + CH2 = 300 W)
DC: 300 W × 2 (per channel)

Discharge & Balancing

Discharge current: 0.1–3.0 A
Balance current: up to 1000 mA / cell

Battery Compatibility

LiPo / LiHV / LiFe / Li-ion: 1–6 S
NiCd / NiMH: 1–16 S
Lead-acid: 2–24 V (≈ 1–12 S)

Convenience & I/O

USB output: 5 V / 2.1 A
Built-in smartphone wireless charging: up to 10 W

Note: not all phones are supported. Examples: iPhone X, iPhone XS, Samsung S8, Huawei P30 Pro, Xiaomi 9, etc.
Built-in servo test function (does not support SR mode or 760 μs servos)

Interface

Languages: English, Deutsch, Français, Japanese, Simplified Chinese, Traditional Chinese
LCD: 3.5 in, 480 × 320 px

Physical

Dimensions: 125 × 119 × 76 mm
Weight: 790 g
Included: AC power cord
