Futaba

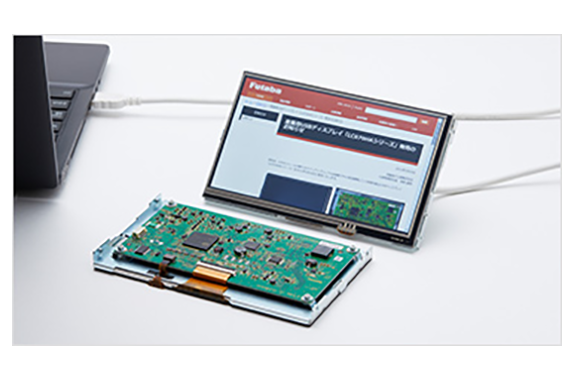

Futaba Command-type LCD Module
Manufacture: Futaba Corporation
Features
Ideal for embedded applications
Supports general-purpose interfaces (USB/RS-232C)
– Fast startup (within 1 second)
– No OS installed, so there is no risk of virus infection
– TFT-LCD display control possible via serial communication
– Full color display possible with 8-bit microcontroller
– TFT-LCD display control possible even with systems that control existing STN-LCD/VFD
Product lineup
3.5-inch LCD module
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC035LA0NA (formerly: LC011BA) | USB | Nothing |
| LC035LA0NB (formerly: LC011BD) | RS232C | ||
| LC035LA0RA (formerly: LC011BB) | USB | Yes | |
| LC035LA0RB (formerly: LC011BE) | RS232C | ||
| Mid-range model | LC035MA1RE | USB/RS232C/ RS485 | Yes |
We also have a lighting kit available that includes a cable.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC035LA0NAK (formerly: LC011BAK) | USB | Nothing |
| LC035LA0NBK (formerly: LC011BDK) | RS232C | ||
| LC035LA0RAK (formerly: LC011BBK) | USB | Yes | |
| LC035LA0RBK (formerly: LC011BEK) | RS232C | ||
| Mid-range model | LC035MA1REK | USB/RS232C | Yes |
4.3-inch LCD module
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC043LA0NA (formerly: LC013BA) | USB | Nothing |
| LC043LA0NB (formerly: LC013BD) | RS232C | ||
| LC043LA0RA (formerly: LC013BB) | USB | Yes | |
| LC043LA0RB (formerly: LC013BE) | RS232C | ||
| Mid-range model | LC043MA1RE | USB/RS232C/ RS485 | Yes |
We also have a lighting kit available that includes a cable.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC043LA0NAK (formerly: LC013BAK) | USB | Nothing |
| LC043LA0NBK (formerly: LC013BDK) | RS232C | ||
| LC043LA0RAK (formerly: LC013BBK) | USB | Yes | |
| LC043LA0RBK (formerly: LC013BEK) | RS232C | ||
| Mid-range model | LC043MA1REK | USB/RS232C | Yes |
5.7-inch LCD module
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC057LA1RD (formerly: LC014AZ) | USB/RS232C/ UART | Yes |
| Mid-range model | LC057MA1RE | USB/RS232C/ RS485 | Yes |
We also have a lighting kit available that includes a cable.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC057LA1RDK (formerly: LC014AZK) | USB/RS232C/UART | Yes |
| Mid-range model | LC057MA1REK | USB/RS232C | Yes |
7.0 inch LCD module
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC070LB1NA (formerly: LC012BA) | USB | Nothing |
| LC070LB1NB (formerly: LC012BD) | RS232C | ||
| LC070LB1RA (formerly: LC012BB) | USB | Yes | |
| LC070LB1RB (formerly: LC012BE) | RS232C | ||
| Mid-range model | LC070MB1RE | USB/RS232C/ RS485 | Yes |
We also offer a case for the 7.0-inch model only.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | AH151DA | USB | Nothing |
| AH151DD | RS232C | ||
| AH151DB | USB | Yes | |
| AH151DE | RS232C |
We also have a lighting kit available that includes a cable.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC070LB1NAK (formerly: LC012BAK) | USB | Nothing |
| LC070LB1NBK (formerly: LC012BDK) | RS232C | ||
| LC070LB1RAK (formerly: LC012BBK) | USB | Yes | |
| LC070LB1RBK (formerly: LC012BEK) | RS232C | ||
| Mid-range model | LC070MB1REK | USB/RS232C | Yes |
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | AH151DAK | USB | Nothing |
| AH151DDK | RS232C | ||
| AH151DBK | USB | Yes | |
| AH151DEK | RS232C |
10.1-inch LCD module
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC101LA1RC (formerly: LC010AZ) | USB/RS232C | Yes |
| Mid-range model | LC101MA1RE | USB/RS232C/ RS485 | Yes |
We also have a lighting kit available that includes a cable.
| Model | Product name | Interface | Touch panel (resistive film) |
|---|---|---|---|
| Standard Model | LC101LA1RCK (formerly: LC010AZK) | USB/RS232C | Yes |
| Mid-range model | LC101MA1REK | USB/RS232C | Yes |
