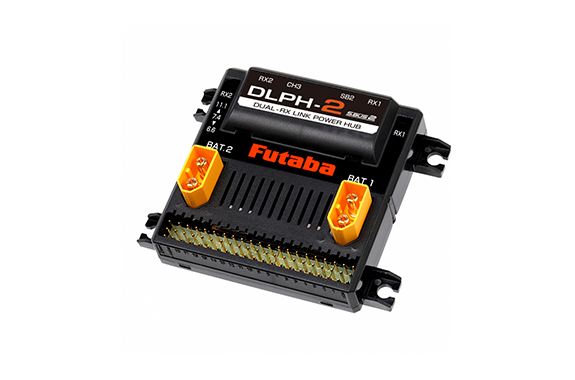

The following functions have been added to the DLPH-1.

Single receiver mode

・Airplane gyro GYA553 connection mode

・Supports FASSTest 26 channels

By using a transmitter (32MZ WC, etc.), various settings can be made visually.

Specifications

Use: 2 receiver switching device ( dual Rx link system )　　　　

FET (rating): 60A x 2
Size: 62.8 x 62.4 x 18.1 mm
Weight: 50g
Operating voltage: 6.4 to 13.0 V (2 batteries (XT60 connector))
Accessories: Switch / Receiver, gyro connection cord x 3 / Mini screwdriver / Flange damper / Eyelet / Wood screws

Two receivers and batteries can be connected.

Electronic switch (controls current with FET circuit)

The telemetry function allows you to display the voltage of two power sources.

Compatible with three types of batteries and equipped with protection function when connecting different types of batteries

Equipped with a protection function when the battery level is low.
