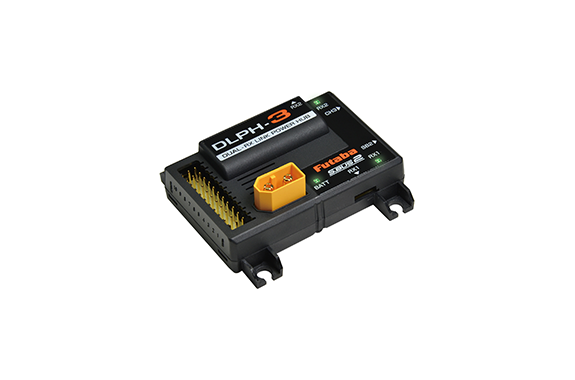

Futaba DLPH-3 Flight Assistant Device

Manufacturer: Futaba Corporation
Model: DLPH-3

MAX60A! 10ch Dual RX Link Power Hub

Ideal for large aircraft that use multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26ch!

Features

The DLPH-2 has become smaller, making it easier to install on 50-70cc aircraft.
Even for large machines, using two units allows the power supply to be divided, providing further safety redundancy.

 Specifications

Use: 2 receiver switching device ( dual Rx link system )

FET (rating): 60A
Size: 43.6 x 66.0 x 19.3 mm
Weight: 34.6 g
Operating voltage: 6.4 to 13.0 V (XT60 connector)
Accessories: Switch / Receiver, Gyro connection cord x 3 / Flange damper / Eyelet / Wood screws

  • Two receivers and batteries can be connected.
  • Electronic switch (controls current with FET circuit)
  • The telemetry function allows you to display the power supply voltage.
  • Compatible with three types of batteries and equipped with protection function when connecting different types of batteries
  • Equipped with a protection function when the battery level is low.
