Futaba

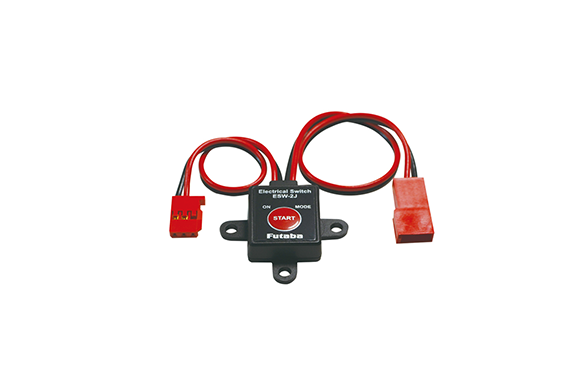

Futaba ESW-2J Electrical Switch

Manufacturer: Futaba Corporation
Model: ESW-2J
Electronically controlled power ON/OFF switch for cars
This is an electronically controlled power ON/OFF switch, designed to offer superior reliability compared to conventional slide switches. Unlike traditional switches, it eliminates issues caused by dirt or dust, preventing malfunctions or resistance problems.
Additionally, this switch allows for mode switching, enabling you to adjust the cutoff voltage for LiPo and LiFe batteries, or even turn the cutoff function OFF when needed, offering more control and flexibility for your power management.
Features
Rated voltage: 4.8 to 7.6V
Instantaneous maximum current: 15A (30 seconds)
Continuous low rated current: 10A
Dimensions: 23.6 x 19.6 x 7.6mm (excluding protrusions)
Cord length: Battery connection side 180mm
Cord length: Receiver side 120mm
