Manufacture: Futaba Corporation
Model: FAA-0, FAA-02

Features

Seven major features of FAA-01

1. Polarization diversity method enables diversity reception with a single antenna that is resistant to multipath interference.
2. Diversity effect can improve communication quality
3. Compact and thin size (57.5 x 57.5 x 14.7 mm) suitable for mounting on or incorporating into equipment
4. The structure is less susceptible to rear influences, so it can be directly attached to metal walls, etc.
5. Drip-proof construction (JIS D0203 S1) that can withstand outdoor installation
6. Comes with a 1m cable so that the antenna can be installed outside the panel

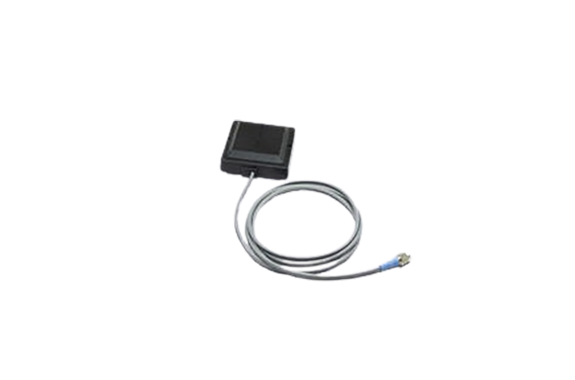

7. FAA-02 is available as a sister product

Product Description

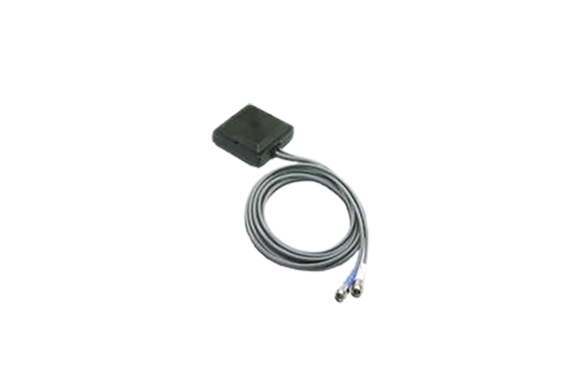

The FAA-01 is a diversity planar antenna developed to maximize the communication capabilities of our 2.4GHz band SS radios . By adopting polarization diversity as a multipath countermeasure, one FAA-01 can achieve the polarization diversity effect of two antennas. It comes with a 1m cable so that even if the radio itself is installed inside a panel, the antenna can be pulled out to a better installation environment outside the panel . We also offer a sister product, the FAA-02, which does not use polarization diversity. To counter multipath fading, you can choose between the polarization diversity method of the FAA-01 or antenna diversity, which involves installing two FAA-02s on one radio.

Its compact, thin , and directional flat design allows it to be installed directly on a metal wall in an FA factory. It also has a drip-proof structure that allows for outdoor installation. (Note 1)

(Note 1) …The device is waterproof and can be used outdoors. However, we recommend using a protective case as the electrical characteristics may deteriorate if water droplets or other foreign matter get on the device.

Main specifications

*Product specifications are subject to change without notice.

Dimensions
