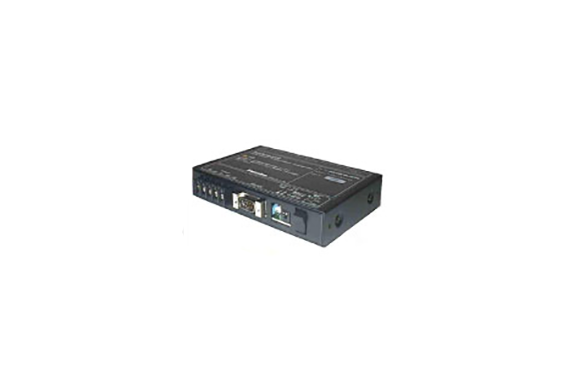

Futaba FAC01EJ020 Industrial Radio Control

Manufacture: Futaba Corporation
Model: FAC01EJ020

Features

Eight major features of FAC01EJ020

Equipped with a high-speed 16-bit CPU, functions can be set using memory registers
When the FRH-SD04T is connected to an RS-485 line in a multi-drop configuration, data collision prevention is achieved on the wired line.
The time from completion of transmission to high impedance state is within 100 μsec.
Baud rates for the RS-232C and RS-485 lines can be selected individually
Both the RS-232C line and the RS-485 line support a maximum baud rate of 38.4 kbps using asynchronous method.
The built-in terminator resistor allows use simply by shorting the terminals
Compatible with various power sources, including DC5 to 31V and AC100V
Compliant with EIA RS485 standard

Product Description

The FAC01EJ020 is an RS-232C/485 intelligent converter developed exclusively for our 2.4GHz band SS wireless modem FRH-SD04T . RS-232C is an extremely widely used serial communications interface, but has the drawback of short communication distances. RS485 is therefore used in areas requiring long distances or multi-drop.

The FRH-SD04T is a 2.4GHz band SS wireless modem equipped with an RS485 interface, and when the FRH-SD03T with RS-232C interface is installed on mobile devices such as AGVs (automated guided vehicles) and AGFs (automated forklifts) operating in factory automation, wide area coverage is possible by connecting multiple FRH-SD04T units via RS485 multidrop to the upper base station. When the FRH-SD04T is used in conjunction with the FAC01EJ020 , a collision prevention function is provided to prevent data collisions on the RS485 line that can occur when multiple FRH-SD04T units are connected via multidrop

Both the RS-232C line and the RS485 line use asynchronous communication and support a maximum baud rate of 38.4 kbps . The RS-232C line and the RS485 line can also be set independently .

Compatible with various power sources including AC100V (dedicated AC adapter) and DC5-31V.

Main specifications

*Product specifications are subject to change without notice.

[RS-232C interface]
Physical Interface		D-Sub 9-pin male connector
Interface Mode		DCE mode
Communication method		Asynchronous
Communication parameters	baud rate	300 to 38,400 bps
	Flow Control	Hard Flow
	Stop bits	7/8 bit
	parity	Even/Odd/None
[RS-485 interface]
Physical Interface		5-pin terminal block, 7.62mm pitch, M3 mounting screws
Communication method		Asynchronous
Communication parameters	baud rate	300 to 38,400 bps
	Flow Control	none
	Stop bits	7/8 bit
	parity	Even/Odd/None
Anti-collision function		Supports the collision prevention function of FRH-SD04T and FDA-02
【others】
Power supply voltage		DC5 to 31V or dedicated AC adapter
Current consumption		200mA or less (when power supply voltage is DC10V)
Operating temperature		-10 to +50°C
External dimensions		145(W) x 94(D) x 27(H)mm (excluding protrusions)
weight		Approximately 200g
