Multi-channel access prevents interference from other stations and ensures smooth communication.
You can connect it to a PC via a microUSB cable, and serial communication is also supported.
There is no need for a separate power supply, making it easy to operate.
It works seamlessly with existing terminal software, offering convenience.
The screen attaches easily to a laptop’s LCD using the included clip, providing flexibility.
Additionally, it can be mounted on a camera tripod with a 1/4″ screw thread for stable positioning.
With a communication range of up to 1,200m (20mW + external antenna/outdoor line of sight), it supports long-distance communication.
The device also features a repeater function with two levels, enhancing its versatility.
Designed to operate with low power consumption, it does not require any license, making it cost-effective and user-friendly.
Futaba

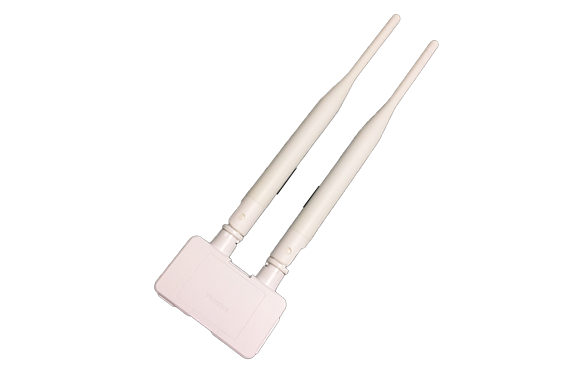

Futaba FEP-03 Wireless Modem
Manufacture: Futaba Corporation
Model: FEP-03
Features
Specifications
| technical standards | ARIB STD-T108 |
|---|---|
| Radio wave format | F1D |
| Radio frequency band | 920.6 to 927.8 MHz (L band), 928.15 to 929.65 MHz (H band) |
| Frequency Channel | 37 channels (L band), 16 channels (H band) |
| Data Modulation Rate | 50kbps (L band), 38.4kbps (H band) |
| Antenna Power | 20mW (L band), 0.8mW (H band) |
| Communication distance | 1200m (L band) [Outdoor line of sight], 300m (H band) [Outdoor line of sight] |
| antenna | Transmit/receive diversity function, sleeve antenna |
| Relay function | Yes (up to 2 levels) |
| Communication method | Simplex communication method |
| Communication type | 1:1, 1:N, N:M |
| Error correction function | Automatic error detection and automatic retransmission functions |
| Supported OS | Windows 10/8/7 (64bit/32bit each) |
| Interface | USB port (micro USB) |
| Data Rate | 9600 to 115.2 kbps |
| Power supply voltage | DC5.0V (USB port) |
| Current consumption | [Transmitting] 68mA or less (L band), 43mA or less (H band) [Receiving] 39mA or less |
| Operating temperature | -20 to +60°C |
| External dimensions | 60(W) x 218.2(D) x 16(H) [including antenna] |
| weight | Approximately 52g (measured value) |
*This product uses an FTDI IC as a USB device.
If the driver installation does not start automatically, please download it from here.
