Futaba

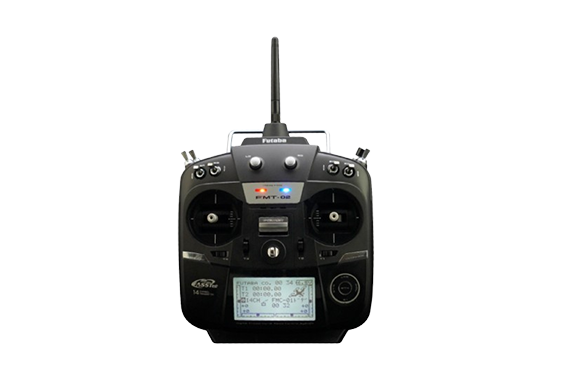

Futaba FMT-02 Wireless Remote Control
Manufacture: Futaba Corporation
Model: FMT-02
Features
FMT-02 2.4GHz band / 14ch
Stable communication packed with the know-how of “Futaba Radio Control.”
Two-way communication enables real-time acquisition of sensor information from distant unmanned aircraft.
Receiver included: FMR-02
Specification
| Specification | Details |
|---|---|
| Controllable Channels | Max. 14ch (12 channels with switch operation + 2 channels with switch action) |
| Interface for Setting Various Parameters | Touch sensor + Push switch x 2, Backlighted LCD monitor (128 × 64 dots) Analog output (operation comparison): 2-axis sticks x 2, Dial x 2, Side levers x 2 Digital output (power): Toggle switch x 7 (2-position/alternate x 1, 3-position x 6), Push switch x 1 |
| Communication Method | 2.4GHz FASSTest (14ch/12ch mode switching), FASST (multi (14ch) / 7ch mode switching), S-FHSS (8ch) |
| Model Memory Count | 30 |
| Display Language | Katakana/English, other languages available upon request |
| Transmitter Side Antenna | Detachable (fixed-type available upon request) |
| External Memory | SD card slot (card sold separately) |
| Power | Nickel-metal hydride battery 6.0V/1,800mAh included |
| Telemetry Function | Receiver power supply, surrounding equipment voltage (1-system only), GPS info, and height information can be monitored via the display screen (optional sensors required). |
| Telemetry Equipment | FMR-02 |
| Outputs | S.BUS/PWM output, S.BUS2 dedicated, 1-system, PWM dedicated, 7-system |
| Antenna Cable Length | Approx. 400mm |
| Notes | Specifications are subject to change without notice. |
