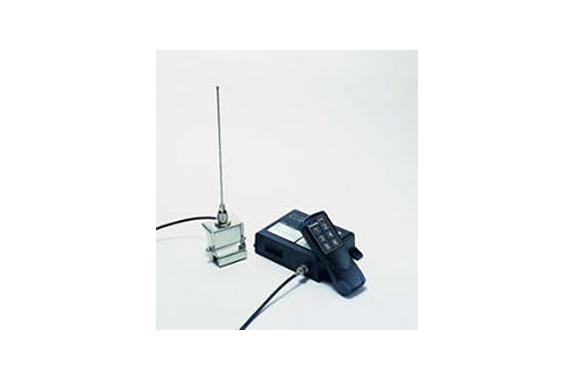

Futaba FRN-0601 Wireless Remote Control

Manufacture: Futaba Corporation
Model: FRN-0601

Features

Eight major features of FRN-0601

Our proprietary correlation decoding method (SS method technology application) ensures high noise resistance.
Equipped with 65,536 different ID codes to prevent malfunction due to interference
Two-material molding with elastomer is used to significantly improve drop resistance
The transmitter is waterproof for everyday use so that it can withstand work in the rain.
Equipped with a power-on failsafe function to prevent malfunctions when the transmitter is turned on
Equipped with an auto power-off function to prevent forgetting to turn off the transmitter
Long life of 30 hours with three AAA alkaline batteries
No license required as it is a weak radio wave that complies with the Radio Law

Main uses

Control of various hydraulic equipment in specially equipped vehicles
ON/OFF control for various civil engineering and construction machinery
Winch winding and unwinding work
Remote control of welfare vehicles and agricultural equipment

Description

The wireless remote control FRN-0601 is a 300MHz band weak radio telecontrol unit that enables wireless remote control of various industrial equipment .

The transmitter case has a new design that is easy to hold and has a great feel for operation, and is lightweight and made with an emphasis on workability . The use of two-material molding with elastomer has significantly improved drop resistance. The operation switch section also has an embossed operation label, giving it a structure that prioritizes the feel of operation . The transmitter is waterproof for everyday use so you can work safely even in the rain .

It is equipped with an auto power-off function to prevent forgetting to turn off the transmitter , a power-on fail-safe function to prevent malfunctions (radio waves will not be transmitted even if the transmitter is turned on while the operation switch is being operated), and a periodic function to extend battery life (radio wave transmission will automatically stop approximately 4 seconds after the operation switch is released).

We offer a total of six types of transmitters, with three types of 2, 4, and 6-point operation to suit various applications , and two types of receiver output configurations : + power supply voltage output (common output)/independent relay output (dry output) .

It uses a correlation decoding method that applies SS (spread spectrum) technology, and has excellent noise resistance. As a result, stable wireless ON/OFF operation is possible from a distance of 30m even with weak radio waves in the 300MHz band.

We also have the 429MHz band specific low-power radio remote control FRP-0601, which can be operated remotely from a distance of 150m.

Transmitter/receiver common specifications

*Product specifications are subject to change without notice.

technical standards	Weak radio waves
Carrier Frequency	317-318MHz
Communication method	One-way communication method
Transmission method	Correlation decoding method *
Communication distance	30m or more (according to our measurement method)
Response speed	Approximately 200 msec, approximately 150 msec in standby mode , when pressed again within approximately 3 seconds
Identification code	ID code 16 bits (65,536 ways)
Operating temperature range	-20 to +60°C
Operating humidity range	90% RH or less (no condensation)
Shock resistance	When not energized: JIS C 0041-1995 (peak acceleration 500m/s², ^action　time 11ms)

*The correlation decoding method is a method with excellent noise resistance that applies our proprietary spread spectrum technology.

Transmitter Specifications

Transmit power	Weak radio waves (field strength of 500μV/m or less at a point 3m away from the transmitter)
Modulation method	FSK FM (radio wave format F1D)
power supply	Three AAA batteries (alkaline batteries recommended)
battery life	Continuous operation: Approximately 30 hours (at room temperature, using new alkaline batteries)
Indicator lamp	1 x 2-color LED Green (normal operating voltage) Red (battery replacement required)
Auto power off function	Power automatically turns off after 3 minutes of inactivity
Periodic Function	To extend battery life, transmission stops approximately 4 seconds after the control switch is released.
switch	Power switch: 1 push-button momentary switch Operation switch: 6 push-button momentary switches
antenna	Built-in
structure	Waterproof for everyday use (JIS D 0203-1994 water spray test R1)
Drop strength	The product has been dropped from a height of 1.5m onto a concrete surface, and normal operation has been confirmed after the test (however, this does not guarantee that the product will continue to function normally or be free of malfunctions after being dropped).
Vibration resistance	Non-energized JIS D 1601-1995 Type 3, Type B, Level 45 (Vibration frequency classification 100)
Case Material	Resin (black) Elastomer (gray)
External dimensions	147(L) x 59(W) x 24(H)mm (excluding protrusions)
weight	Approximately 130g (including battery, approximately 30g)
Malfunction prevention function	Power-on fail-safe function

Receiver Specifications

Reception sensitivity	0.7μV or less (-110dBm or less)
Reception method	Double Superheterodyne
Malfunction prevention method	CRC error detection method, identification between devices by ID code
operation	ON/OFF momentary operation (6 channels can be operated simultaneously)
Operation Channel Output	Relay open/close type (a contact) power supply voltage output type (FRN-0601) Fig. 1 Relay open/close type (a contact) independent relay contact output type (FRN-0602) Fig. 2
Operating power supply voltage	DC 9 to 31 V
Maximum current consumption	0.8A (excluding load current) 60mA or less when not receiving
antenna	1/4λ whip antenna (stainless steel rod, length 260mm)
Monitor lamp	2 red LEDs (1 for power supply confirmation, 1 for reception confirmation)
Dust resistance	JIS D 0207-1977 F2
Vibration resistance	When energized: JIS D 1601-1995 Type 3, Type B, Level 70 (Frequency Class 70)
Case Material	Resin (black)
External dimensions	117 (L) x 172 (W) x 46 (H) mm
weight	Approximately 370g
