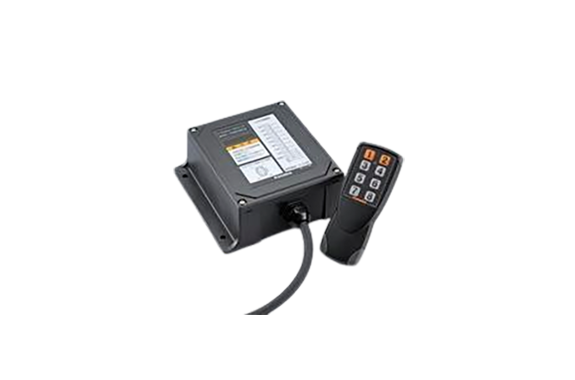

Futaba FRQ-0801 Wireless Remote Control

Manufacture: Futaba Corporation
Model: FRQ-0801

Features

8 major features of FRQ-0801

Our proprietary correlation decoding method (SS method technology application) ensures high noise resistance.
429MHz band specific low power radio, enabling wireless ON/OFF control of devices up to approximately 80m away
Two-material molding with elastomer is used to significantly improve drop resistance
The transmitter is waterproof for everyday use so that it can withstand work in the rain.
The receiver is waterproof, so it can be installed outdoors.
Equipped with a power-on failsafe function to prevent malfunctions when the transmitter is turned on
Long battery life of 15 hours with three AAA alkaline batteries
No license required as it complies with the Radio Law and is a specific low-power device.

Main uses

Control of various hydraulic equipment in specially equipped vehicles
ON/OFF control for various civil engineering and construction machinery
Winch winding and unwinding work
Remote control of welfare vehicles and agricultural equipment

Description

The wireless remote control FRQ-0801 is a 429MHz band specific low-power wireless telecontrol unit that enables wireless remote control of various industrial equipment .

This wireless telecontrol unit allows for ON/OFF operation of up to 8 contacts , whereas our previous models, the FRN-0601 and FRP-0601 , only had a maximum of 6 contacts. Furthermore, unlike previous models, the receiver is waterproof , allowing it to be installed outdoors. The receiver antenna is built into the receiver, eliminating the need for complicated antenna installation work. The transmitter case employs a new design that prioritizes ease of use, providing a comfortable fit in the hand and excellent operability. It is also lightweight and employs two-material molding with elastomer , significantly improving drop resistance. The design also prioritizes operability, with embossed operation labels used on the operation switches .

In addition, the new model inherits various functions and specifications that have been well received in previous products, such as the correlation decoding method (our unique communication method that applies the spread spectrum method to achieve high communication quality ), the auto power off function ( to prevent forgetting to turn off the transmitter), the power on fail-safe function (to prevent malfunctions when the transmitter is turned on) , and a transmitter with a waterproof structure that allows you to work safely in the rain.

Transmitter/receiver common specifications

*Product specifications are subject to change without notice.

technical standards	ARIB STD-T67
Carrier Frequency	429.2500-429.7375MHz (12.5kHz separation, 40 waves) The 40 waves are divided into 10 groups, and one system automatically selects one of the four waves.
Communication method	One-way communication method
Transmission method	Correlation decoding method *
Communication distance	Over 80m (according to our measurement method)
Response speed	Approximately 130msec
Identification code	ID code 16 bits (65,536 ways)
Operating temperature range	-20 to +60°C
Operating humidity range	90% RH or less (no condensation)
Shock resistance	When de-energized: JIS C 60068-2-27 (peak acceleration 500m/s², ^action　time 11ms)

*The correlation decoding method is a method with excellent noise resistance that applies our proprietary spread spectrum technology.

Transmitter Specifications

Antenna Power	10mW
Carrier Sense function	The antenna has an absolute gain of 2.14 dBi and detects no radio waves when the signal is below 7 μV. If the antenna detects radio waves from other stations before transmitting, it will automatically switch to another channel (frequency).
Modulation method	FSK FM (radio wave format F1D)
power supply	Three AAA batteries (alkaline batteries recommended)
battery life	Continuous operation: Approximately 15 hours (at room temperature, using new alkaline batteries)
Indicator lamp	1 x 2-color LED Green (normal operating voltage) Red (battery replacement required)
Auto power off function	Power automatically turns off after 5 seconds of inactivity
switch	Operation switch: 8 push-button momentary switches (all switches also serve as power switches)
antenna	Built-in
structure	Waterproof for everyday use (JIS D 0203-1994 water spray test R1)
Drop strength	The product has been dropped from a height of 1.5m onto a concrete surface, and normal operation has been confirmed after the test (however, this does not guarantee that the product will continue to function normally or be free of malfunctions after being dropped).
Vibration resistance	Non-energized JIS D 1601-1995 Type 3, Type B, Level 45 (Vibration frequency classification 100)
Case Material	Resin (black) Elastomer (gray)
External dimensions	147(L) x 59(W) x 24(H)mm (excluding protrusions)
weight	Approximately 160g (including battery, approximately 35g)
Malfunction prevention function	Power-on fail-safe function

Receiver Specifications

Reception sensitivity	1.0μV or less (-107dBm or less)
Reception method	Double Superheterodyne
Malfunction prevention method	CRC error detection method, identification between devices by ID code
operation	ON/OFF momentary operation (simultaneous operation possible, except for 1ch and 2ch simultaneously)
Operation Channel Output	Relay open/close type (a contact) power supply voltage output type (FRQ-0801) Fig. 1 Relay open/close type (a contact) independent relay contact output type (FRQ-0802) Fig. 2
Operating power supply voltage	DC 9 to 31 V
Maximum current consumption	1.2A (excluding load current) 100mA or less when not receiving
antenna	Built-in
Monitor lamp	2 red LEDs (1 for power supply confirmation, 1 for reception confirmation)
Dust resistance	JIS D 0207-1977 F2
water resistance	JIS D 0203-1994 S2 (Install the input/output cable pull-out surface downwards)
Vibration resistance	When energized: JIS D 1601-1995 Type 3, Type B, Level 70 (Frequency Class 100)
Case Material	Resin (black)
External dimensions	168.7 (L) x 184 (W) x 69 (H) mm
weight	Approximately 800g
