Futaba

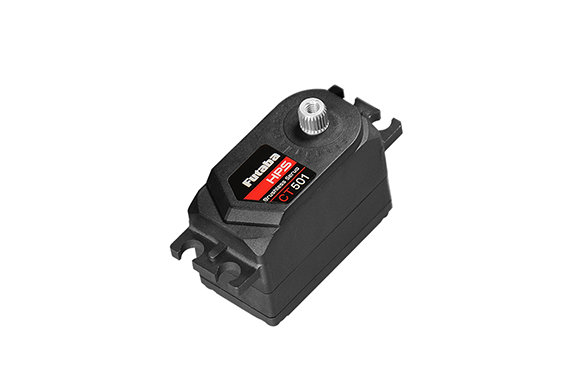

Futaba HPS-CT501 Car Servo
Manufacturer: Futaba Corporation
Model: HPS-CT501
1/10 electric touring car
High-performance brushless servo with incredible torque and low power consumption.
★The HPS-CT501 is a low-profile servo compatible with “UR mode” and “SR mode.”
Features
Dimensions: 40.5 x 21.0 x 26.9 mm
Weight: 44 g
Speed: 0.06 sec / 60° (7.4 V); 0.07 sec/60° (6.0 V)
Torque: 21.0 kgf・cm (7.4 V); 17.1 kgf cm (6.0 V)
UR mode compatible
S.BUS method
HPS motor
Metal 1-3 gear
High-strength metal final gear
Resin case
Black cord
*UR mode is available in the latest version of T10PX.
*UR mode can be used with the latest transmitter/receiver updates for T10PX and R404SBS/SBS-E.

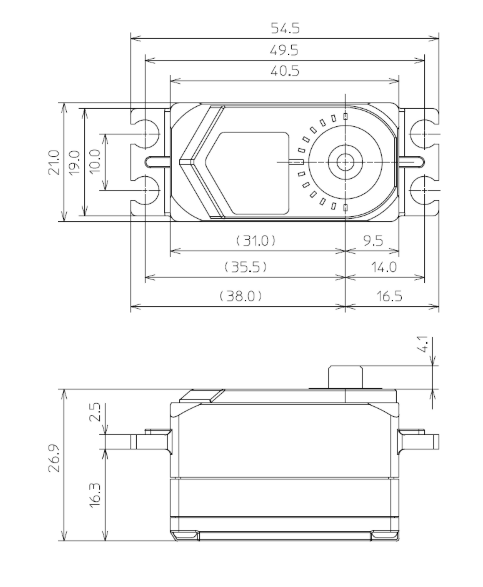

Dimension
