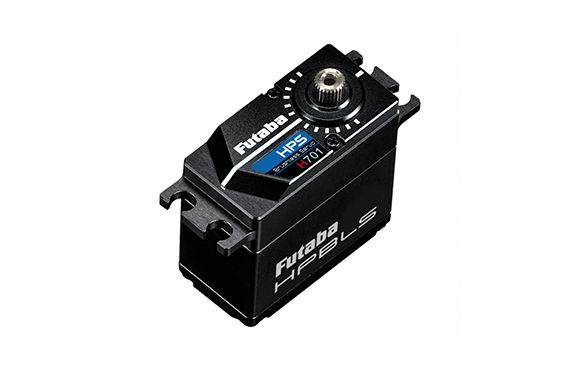

Futaba HPS-H701 For Airplanes (S.BUS)
Manufacturer: Futaba Corporation
Model: HPS-H701
Large helicopters in general
This high-performance brushless servo delivers impressive torque and low power consumption, making it one of the most powerful HPS servos available.
Features
Dimensions: 40.5 x 21.0 x 37.8 mm
Weight: 76 g
Speed: 0.07 sec / 60° (7.4 V); 0.075 sec/60° (6.6 V)
Torque: 4 0.0 kgf cm (7.4 V); 36.0 kgf cm (6.6 V)
1520μs ( can be changed to 760 μs )
S.BUS method
HPS motor
Metal 1-3 gear
Titanium final gear
Aluminum case

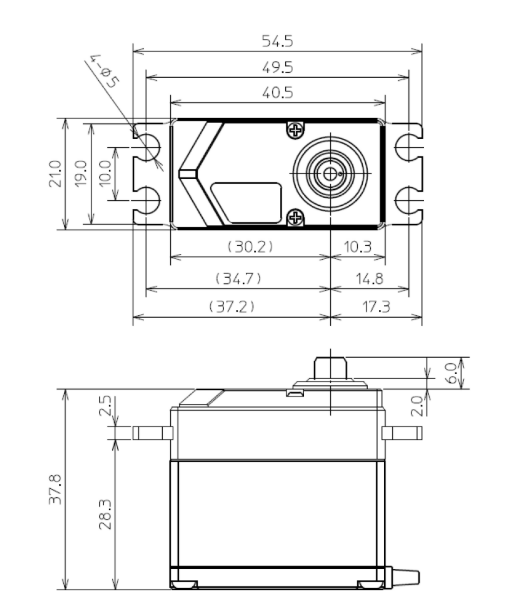

Dimension
