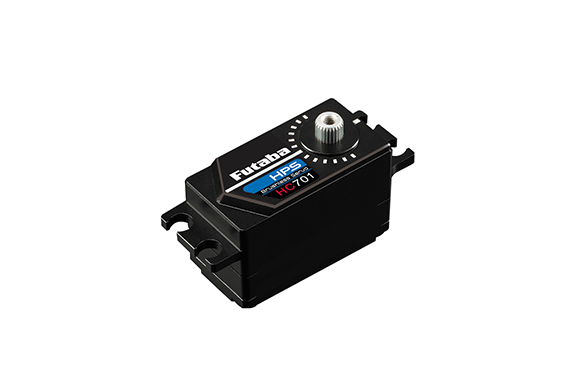

Futaba HPS-HC701 For Airplanes (S.BUS)
Manufacturer: Futaba Corporation
Model: HPS-HC701
F3C Swash
High-performance brushless servo with impressive torque and low power consumption.
★The HPS-HC701 is a low-profile servo compatible with “UR mode.”
Features
Dimensions: 40.5 x 21.0 x 26.2 mm
Weight: 56 g
Speed: 0.07 sec / 60° (7.4 V); 0.08 sec/60° (6.6 V)
Torque: 30.0 kgf・cm (7.4 V); 26.5 kgf cm (6.6 V)
760μs ( can be changed to 1520 μs )
S.BUS method
HPS motor
Metal 1-3 gear
High-strength metal final gear
Aluminum case
Torque is 27.0 kgf・cm (7.4V) and 24.0 kgf・cm (6.6V) at 760 μs.

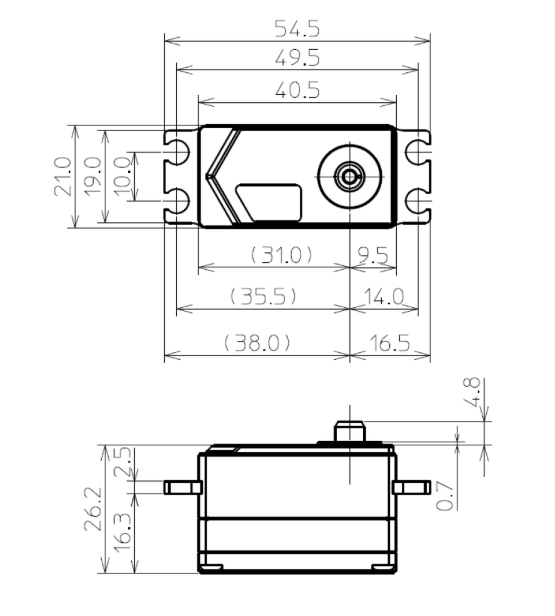

Dimension
