Futaba

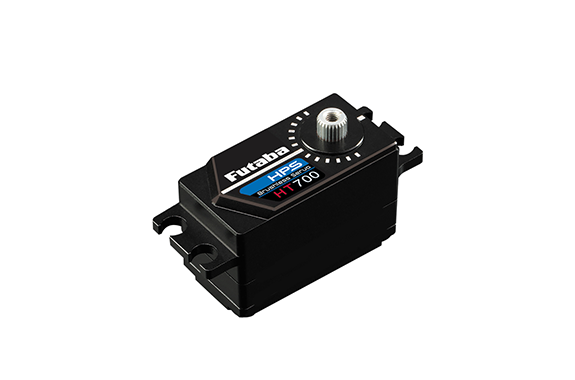

Futaba HPS-HT700 For Airplanes (S.BUS)
Manufacturer: Futaba Corporation
Model: HPS-HT700
F3C aircraft ladder
High-performance brushless servo with impressive torque and low power consumption.
★The HPS-HT700 is a low-profile servo compatible with “UR mode.”
Features
Dimensions: 40.5 x 21.0 x 26.2 mm
Weight: 56 g
Speed: 0.045 sec / 60° (7.4 V); 0.05 sec/60° (6.6 V)
Torque: 9.6 kgf cm (7.4 V); 8.6 kgf cm (6.6 V)
760μs ( can be changed to 1520 μs )
S.BUS method
HPS motor
Metal 1-3 gear
High-strength metal final gear
Aluminum case
By combining it with the CGY770R , you can experience the significantly improved response of the “UR mode.”

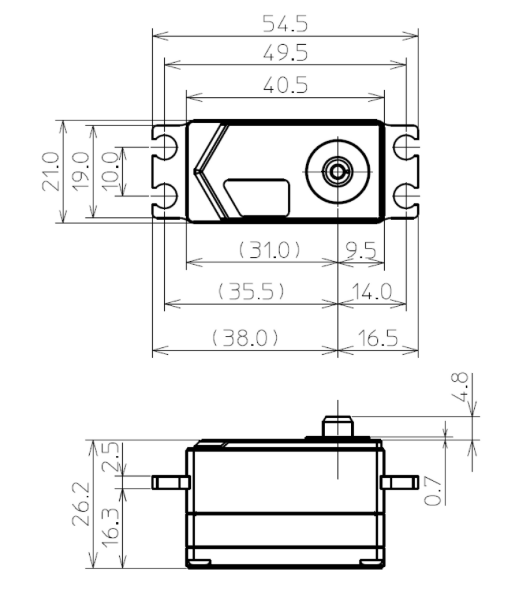

Dimension
