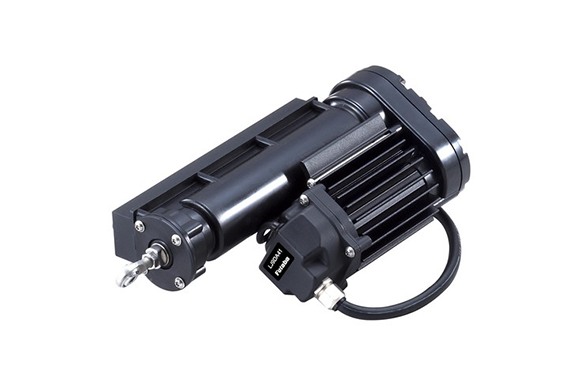

Futaba LJ9DA41 Industrial Servov
Manufacturer: Futaba Corporation
Model: LJ9DA41
Features
The LJ9DA41 is a linear motion servo designed for UAS (Unmanned Aerial Systems). The servo integrates a motor, reducer, linear motion mechanism, and control circuit, and communicates with external devices to issue commands and return internal information. It also meets the dustproof and waterproof standards (IP64).
Specification
| Model name | LJ9DA41 |
|---|---|
| Rated voltage [V] | 14.8 |
| Rated thrust [N] | 96.0 |
| Maximum thrust (instantaneous) [N] | 480.0 |
| No-load rotation speed [mm/s] | 105.0 |
| Dustproof/waterproof structure | IP67 |
| Case Material | Gear Box: Resin Heat Sink: Aluminum |
| Gear Material | 1st: Metal 2nd: Resin 3rd: Metal Ball Screw: Metal |
| Connection cable | Detachable shielded cable |
| Cable length [mm] | 400.0 |
| Connector part | 8-pole connector |
| Dimensions (W x L x H) [mm] | 197.6×51.1×99.3 |
| Control and communication standards | PWM / S.BUS / S.BUS2 / RS485 |
| Operating temperature [℃] | -10 to +60 |
| Weight [g] | 720.0 |
| Position Feedback | Yes |
Control and Communication Standards
Intended for connection to Futaba RC receivers and various other controllers, the controller supports the following standards:
・PWM: PWM signal used in conventional hobby RC servos
・S.BUS: Futaba’s proprietary serial communications protocol for hobby RC servos
・RS485: The same two-way communications protocol as Futaba’s robot command-type servos
Each communication format cannot be used simultaneously.
Position Feedback:
The output voltage changes according to the angle of the output shaft. The angle can be constantly monitored while power is applied.

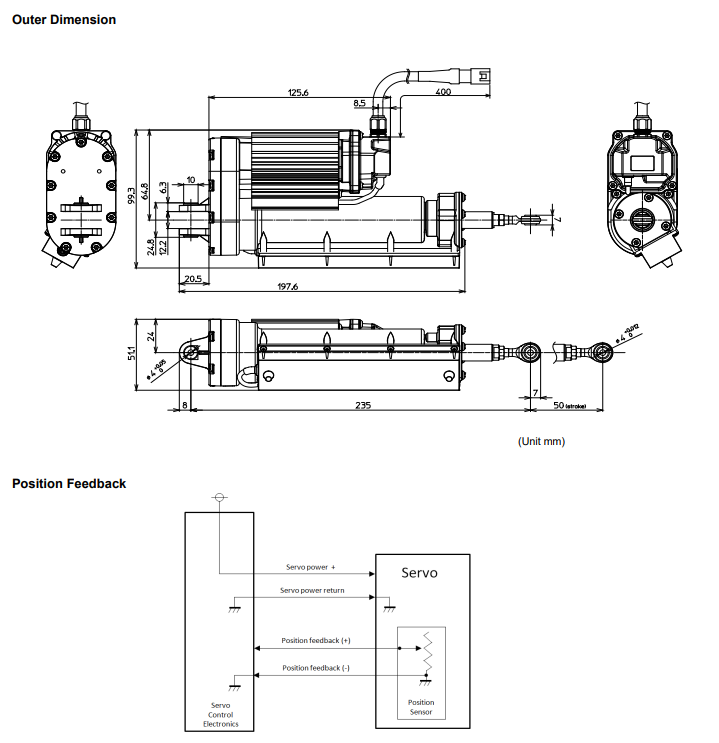

Dimension
