When using CGY755, GYA553, DLPH-2, etc.

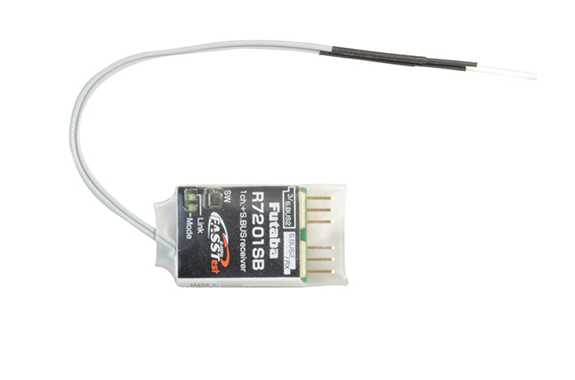

This is a recommended receiver for aircraft that only require receiving functionality via S.BUS connection.

In addition, since it is a small receiver, it can be used with a dual Rx link system.

It also works as a sub-receiver.

・FASSTest 2.4GHz system (26ch/18ch/12ch mode)
・S.BUS 2 input/output / S.BUS output + conventional system output (ch1)

– Dual Rx link system

Antenna: Diversity type
Dimensions: 21.5 x 39.5 x 6.5 mm
Weight: 4.9 g
Power supply: 3.7 to 7.4 V (dry cell batteries cannot be used)

– Usable voltage range: 3.5 to 8.4V
– Battery F/S voltage: Set from the transmitter

– Standard connector
