Futaba

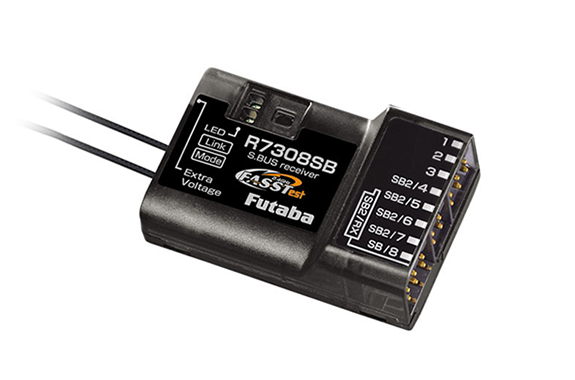

Futaba R7308SB Empty Use

Manufacturer: Futaba Corporation
Model: R7308SB
Equipped with FASSTest method for air and dual Rx link system
Equipped with a FASSTest dual Rx link system for airborne use. 8-channel receiver with high-gain antenna.
Features
・FASSTest 2.4GHz system (18ch/12ch mode)
・S.BUS 2 input/output / S.BUS output + conventional system output (ch1-8)
– Dual Rx link system
Antenna: Diversity, high-gain antenna
Dimensions: 24.9 x 38.8 x 14.3 mm
Weight: 11.0 g
Power supply: 3.7 to 7.4 V (dry cell batteries cannot be used)
– Usable voltage range: 3.5 to 8.4V
– Battery F/S voltage: Set from the transmitter
・Servo connection port = Standard connector
– Comes with an input port for external voltage measurement (allowable voltage range 0 to 70V DC) (connection cord sold separately)
