Torque: 7.1 [kgf・cm]
Speed: 0.11 [sec/60°]
Weight: 28 [g]
Dimensions: 35.8 x 19.5 x 25.0 mm
Power supply voltage: 7.4 [V]
Range of motion: 300 [deg]
Communication format: RS485 half-duplex communication

Compact and lightweight servo with coreless motor and metal gears

Among the RS30xx series developed for small bipedal robots, the RS305CR achieves high torque and high speed by combining a coreless motor and metal gears.When installing it on a robot, the DF11 connector made by Hirose Electric is used to reduce the space required for the connector to pass through the joints.

Option

We sell replacement cases for the RS3xx series, gear sets for the RS301CR/RS303MR, and servo horns for the RS3xx series.

• RS3xx series case set
• Gear set for RS301CR_RS303MR
• Servo horn for RS3xx series
• It is also possible to install servo horns for Futaba radio control servos, A type to K type, and RS3xx series servo horns.

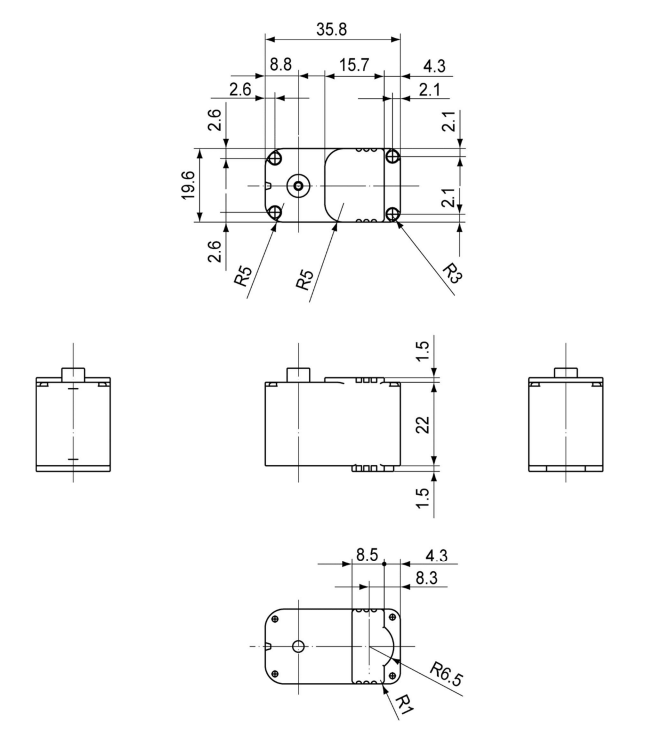

Dimension
