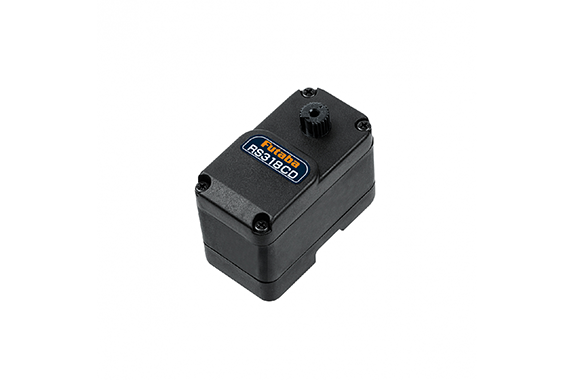

Futaba RS318CD Command-type Servo
Manufacturer: Futaba Corporation
Model: RS318CD
Compact and lightweight servo with resin gears
The RS318CD (TTL command system) is the same type of servo as used in Robi 2. The connector is equipped with two ADH connectors, allowing for daisy chain connection, and the same hubs and harnesses as the RS204MD can be used.
Features
Torque: 5.5 [kgf・cm]
Speed: 0.16 [s/60°]
Weight: 19 [g]
Dimensions: 35.8 x 19.6 x 25.0 mm
Power supply voltage: 6.0 to 8.4 [V]
Range of motion: 300 [deg]
Communication format: TTL half-duplex (PWM method not supported)
Please refer to the instruction manual for dimensions and mounting hole positions.
*RS318CD only supports command method and does not support PWM method.
