Manufacturer: Futaba Corporation
Model: S-A301

S.BUS digital standard servo for airplanes

This is a high-speed digital standard servo that uses the S.BUS system for airplanes.

Features

High-speed digital standard servo for airplanes.
Metal 2-3 gears
Aluminum final gear
S.BUS system
Speed: 0.13 sec/60° (7.4V) / 0.14 sec/60° (6.6V)
Torque: 9.0 kgf-cm (7.4V) / 8.5 kgf-cm (6.6V)
Dimensions/Weight: 40 x 20 x 38.1 mm / 47 g
Use with large scale aircraft, acrobatic aircraft, or aircraft with large control surfaces may result in servo failure due to overload or vibration. For aircraft weighing 4000 g or more or with an engine displacement of 25 cc or more, use the S-A501 or a servo with 16 kgf-cm (7.4V) or higher. The S-A301 is an airplane servo. Do not use with helicopters.

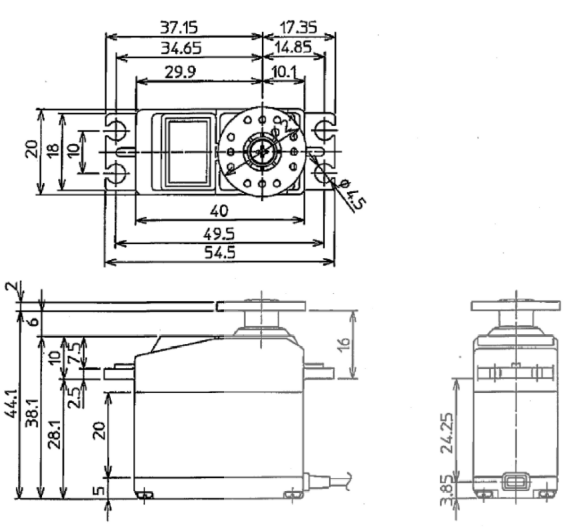

Dimension
