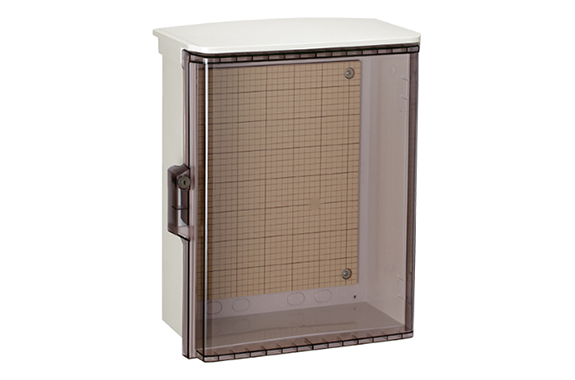

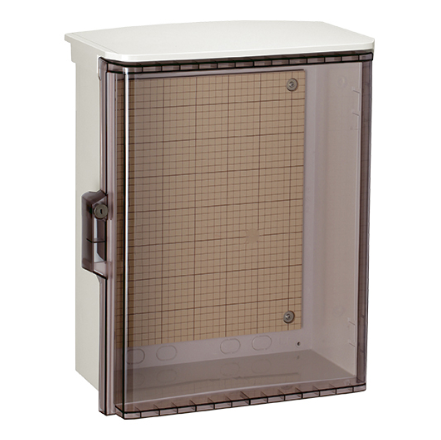

Hakaru CSA-133/137 Standard Box With Built-In LoRa Radio (Weather-Resistant Resin, Transparent Door, Rod Antenna)
Manufacturer: HAKARU PLUS CORPORATION
Model: CSA-133/137
Product Description
Built-in LoRa radio with rod antenna
Weather-resistant resin standard box (transparent door) for on-site installation
Circuit protector and signal terminal block included
*The box will be delivered, and the entrance will be prepared during construction.
Features
Weather-resistant plastic box with key and transparent door!
The transparent door makes it ideal for monitoring internal equipment!
Uses weather-resistant AAS resin! Little discoloration or loss of mechanical strength due to sunlight!
specification
CSA-133/137
| Model | CSA-133 | CSA-137 |
|---|---|---|
| External dimensions (mm) | 250W-400H-160D | 400W-400H-160D |
| Built-in adaptive LoRa radio | HLR-A1 HLR-C1 HLR-C2 HLR-RS485 HLR-A1-OUT | HLR-A4C4 HLR-A8 HLR-RPT |
| Material (body and roof) | AAS resin | AAS resin |
| Material (door) | acrylic resin | acrylic resin |
| Box Plate Thickness | Door/body 2.5-3.5mm | Door/body 2.5-3.5mm |
| Installation location | Outdoors | Outdoors |
| IP standard | IP44 | IP44 |
| Color (body/roof) | N White Gray (N8.5) | N White Gray (N8.5) |
| Color (door) | Light smoke color | Light smoke color |
| remarks | With key *No wire entry processing | With key *No wire entry processing |
| Nitto Kogyo model | OPK-CA | OPK-CA |
| BOX internal parts | ・Circuit protector ・LoRa radio signal terminal block | ・Circuit protector ・LoRa radio signal terminal block |
