Product Description

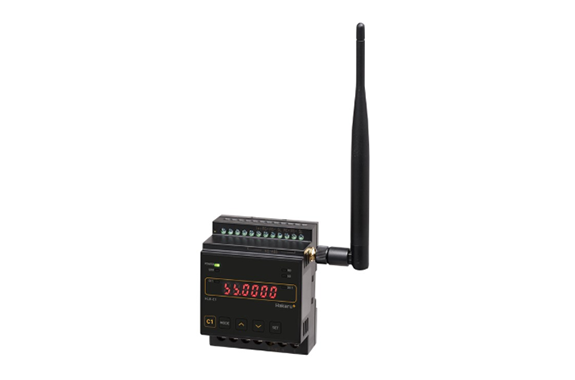

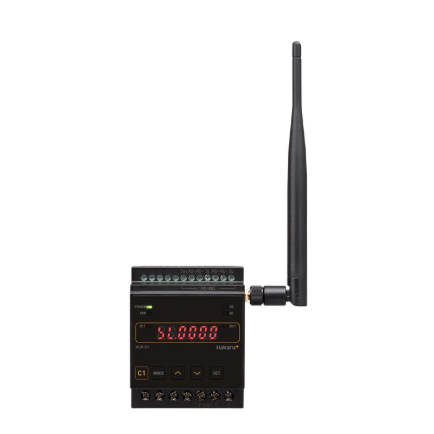

The LoRa wireless contact point model HLR-C1 handles one contact point input/output in a single unit. It can transmit data to an IoT gateway via LoRa wireless and monitor contact signals (such as count, status, and ON time).

Using wireless transmission, the HLR-C1 can send contact input signals and output contact signals to other HLR-C1 units, even at a distance. It can transmit input signals to one HLR-C1 and send them to up to 50 devices simultaneously via LoRa wireless.

LoRa (*) is used for wireless communication. This technology allows communication up to 5 km in line of sight with the HLR-GW IoT gateway and paired HLR-C1 devices. LoRa can reach areas where conventional 920 MHz low-power wireless communication cannot, without needing a repeater. This feature is highly appreciated by customers.
*This device uses LoRa Private.

Features

One contact input can be monitored (ON/OFF status, count, and ON time are shown on the IoT gateway).
It has one contact output (non-voltage contact, mechanical relay).
Ideal for locations with scattered measurement points.
You can use HLR-C1 devices for simple notification systems.

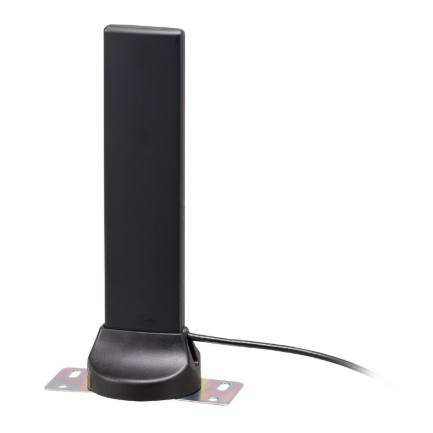

An external antenna can be installed.
