Hakaru HXM-96 High-Performance Electronic Multimeter For Overseas Markets

Manufacturer: HAKARU PLUS CORPORATION
Model: HXM-96

Product Description

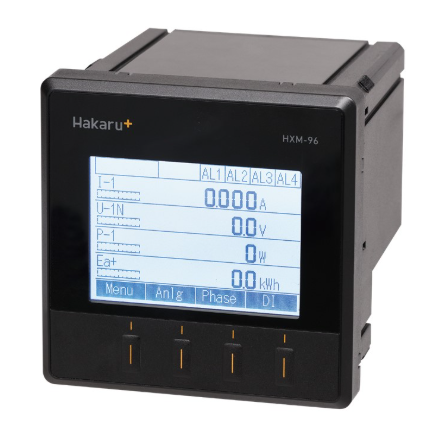

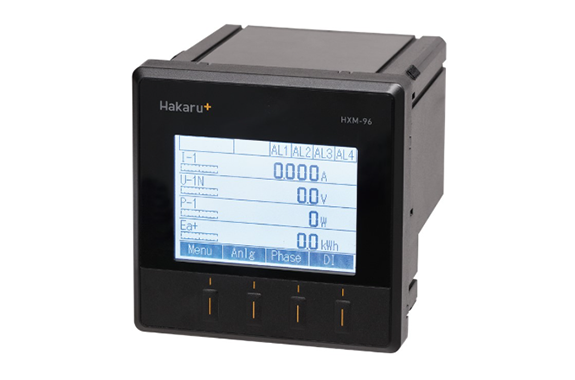

This 96mm square digital instrument integrates an indicator and a converter and can display up to four elements (four bar graphs, four digital) of measurement data at once.

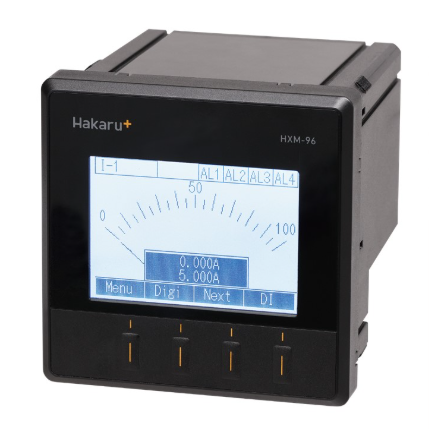

In addition, measurement values can be displayed in analog by switching.
RS-485 and alarm output functions are standard equipment, allowing monitoring from remote locations.
The LCD panel has adopted a full-dot display system instead of the conventional segment display system, making the displayed content and setting items easier to read.

Features

Measurements can be made for single-phase two-wire, single-phase three-wire, three-phase three-wire, or three-phase four-wire.
It is possible to measure line voltages between 100V and 480V.
Measures current, voltage, power, reactive power, apparent power, power factor, frequency, demand current, demand power, received power amount, transmitted power amount, received reactive power amount (LAG/LEAD), transmitted reactive power amount (LAG/LEAD), and apparent power amount.
It is possible to measure harmonic distortion of current and voltage.
Measurement values can be communicated via RS-485 communication (Modbus/RTU).
The maximum value of each measurement is stored, allowing you to check past electricity usage.
The following optional functions can be installed depending on the model.

3 contact inputs and 3 alarm outputs can be added.
Measurement value logging is possible, and log data can be transferred to USB memory.
Modbus/TCP communication can be selected.
