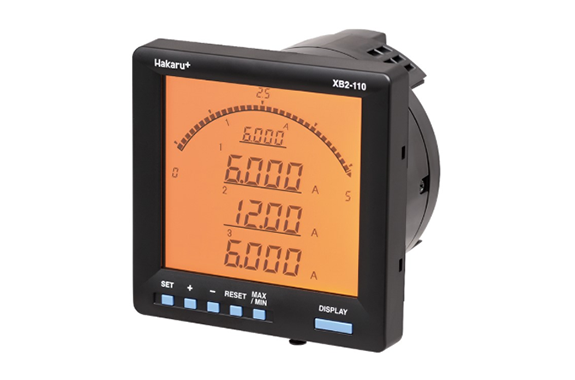

Hakaru XB2-110 Electronic Multimeter DC Measurement Type

Manufacturer: HAKARU PLUS CORPORATION
Model: XB2-110

Product Description

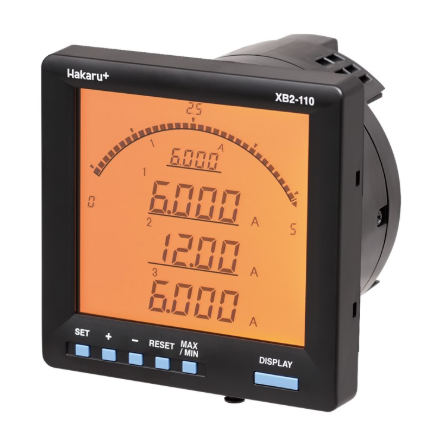

This 110mm round body digital meter integrates a DC input indicator and converter and can display up to four measurement elements (1 bar graph, 3 digital) at once.
The displayed content can be changed depending on the purpose.
Optional functions include analog output, pulse output, alarm output, RS-485 communication, and CC-Link communication.
This product measures DC current, voltage, power, and the amount of current and power for charging and discharging.

Features

Four measurement items can be displayed simultaneously. The display items can be set as desired.
[DC current, DC voltage, DC charging power, DC charging current, DC discharging power, DC discharging current]
DC current, DC voltage, and DC power can be measured simultaneously (only when specifying a combination of voltage and current input).
Measures the amount of charging and discharging power (only when the voltage + current input combination is specified).
Measures the amount of charging and discharging power (only when the voltage + current input combination is specified).
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
You can set the backlight auto-off time and adjust the brightness.
Depending on the model, the following optional functions can be installed:

Analog output x 4 points, pulse output, alarm output simultaneously installed
RS-485 communication + contact status input x 3 points, pulse output, alarm output simultaneously installed
RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, alarm output simultaneously installed
CC-Link communication + contact status input x 3 points, pulse output, alarm output simultaneously installed
