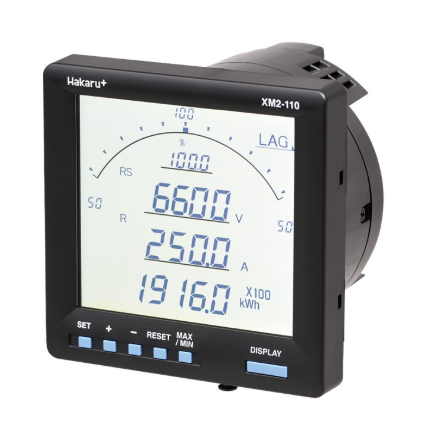

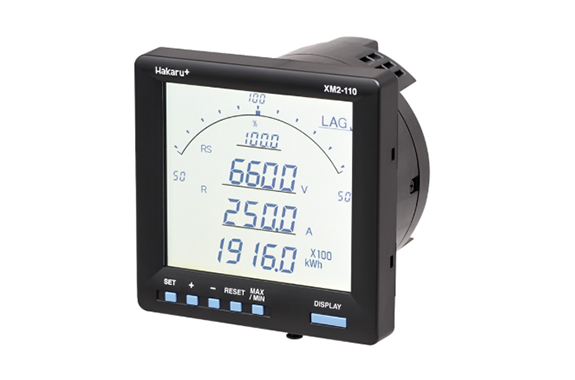

Four measurement items can be displayed simultaneously. The display items can be set as desired.
[Current, voltage, power, reactive power, power factor, frequency, demand current, demand power, received power amount, transmitted power amount, received reactive power amount (lag/lead), transmitted reactive power amount (lag/lead)]
Measurements can be made for single-phase two-wire, single-phase three-wire, and three-phase three-wire (selectable settings).
Current can be measured using the 3CT method. *Power is measured using the two-power meter method.
It measures harmonics (current and voltage) and can measure 5th order conversion.
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
You can set the backlight auto-off time and adjust the brightness.
Depending on the model, the following optional functions can be installed: Simultaneous installation of

• 4 analog outputs, pulse output, and alarm output
• RS-485 + contact status input x 3 points, pulse output, and alarm output
• RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, and alarm output
• CC-Link communication + contact status input x 3 points, pulse output, and alarm output
