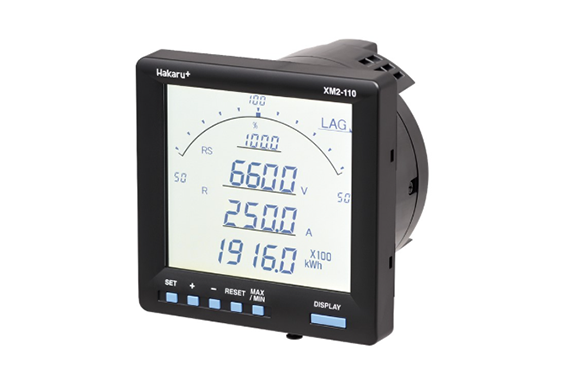

Hakaru XM2-110-X66 Electronic Multimeter, Phase and Wire Display Special Type (Single-Phase, Three-Wire, RSTN)

Manufacturer: HAKARU PLUS CORPORATION
Model: XM2-110-X66

Product Description

This 110mm round body digital meter integrates an indicator and a converter and can display up to four measurement elements (1 bar graph, 3 digital) at once.
Optional functions include analog output, pulse output, alarm output, RS-485 communication, and contact status input.
The LCD panel uses the STN method, which provides higher contrast and a wider viewing angle than conventional products.
As a special feature, the phase display for single-phase three-wire can be set to either “1N2”, “RNS”, “RNT”, or “SNT”.

Features

Four measurement items can be displayed simultaneously. The display items can be set as desired.
[Current, voltage, power, reactive power, power factor, frequency, demand current, demand power, received power amount, transmitted power amount, received reactive power amount (lag/lead), transmitted reactive power amount (lag/lead)]
The phase display for single-phase three-wire can be set to “1N2”, “RNS”, “RNT”, or “SNT”.
It can measure harmonics (current and voltage) up to the 15th order and convert it into 5th order measurements.
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
You can set the backlight auto-off time and adjust the brightness.
Depending on the model, the following optional functions can be installed: Simultaneous installation of

4 analog outputs, pulse output, and alarm output
RS-485 + contact status input x 3 points, pulse output, and alarm output
RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, and alarm output
CC-Link communication + contact status input x 3 points, pulse output, and alarm output
