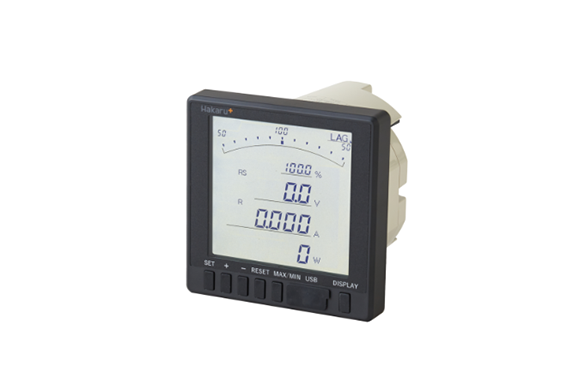

Hakaru XM3-110-X301 New Io/Ior Measurement

Manufacturer: HAKARU PLUS CORPORATION
Model: XM3-110-X301

Product Description

The “XM2-110 Electronic Multimeter,” which was launched in 2012, has been revamped to the “XM3-110.”
While retaining the same functionality as the XM2-110, new features have been added, making it easier to use.

Features

In order to display more information, part of the screen has been changed to a full dot area. Characters and symbols can be displayed, so the settings are displayed when manually setting.
By scanning the 2D code, device information such as model name and serial number, as well as a link to the download page for this page’s materials, will be displayed. *Patent pending
The PC setting connector has been changed to USB TYPE-C, so that it can be set up via USB power supply. *Utility model no. 3250122
The shape of the switch has been changed to make it easier to operate.
To make it easier to see the terminal names and device numbers, the molding color of the case body has been changed from black to ivory.
The harmonics that can be measured range from 15th to 31st.
Some of the special products we produced in the past have been standardized.
The backlight is now available in two colors: amber and white (green and orange have been discontinued).

Specification

Specification

item	specification
phase wire system	(Model specification) Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire (setting switch) Three-phase 4-wire
Voltage Input	・AC110V, AC220V (setting switch)
Current Input	(Model designation) ・5A ・1A
Auxiliary power supply	(Model specification) AC85~264V or DC85~143V , DC20~40V , DC30~60V
External Operation Input	2 points

Digital display

Measurement item (number of digits)	Input Rating	inherent error	remarks
Current (3・4)	0~1A・0~5A	±0.5%	Display unit A/kA switching
Line voltage (3, 4)	0~150V・0~300V	±0.5%	Display unit V/kV switching
Phase voltage (3, 4)	0~150√3V・0~300√3V	±0.5%	Display unit V/kV switching
Electricity (4)	0~1kW・-1~0~1kW・0~2kW・-2~0~2kW	±0.5%	Display unit switchable between W, kW and MW, negative display
Reactive Power (4)	0~Lag1kvar・Lead1~0~Lag1kvar・0~Lag2kvar・Lead2~0~Lag2kvar	±0.5%	Display units: var, kvar, Mvar switchable, with Lag and Lead display
Power factor (3)	Lead50~100~Lag50・Lead0~100~Lag0(%)	±2.0%	Lag/Lead display, 1 decimal place
Electricity (6)	Digital display: multiplication factor x 1, x 10, x 100, x 1000	±2.0% ±2.5%	5 to 120% of rated current (power factor = 1) 10 to 120% of rated current (power factor = 0.5)
Reactive energy (6)	Digital display: multiplication factor x 1, x 10, x 100, x 1000	±2.5% ±2.5% ±3.0%	10 to 120% of rated current (power factor = 0) 20 to 120% of rated current (power factor = 0.866) 10% of rated current (power factor = 0.866)
Frequency (3)	45~65Hz・45~55Hz・55~65Hz・	±0.5%	1 decimal place
Demand current Maximum demand current (3/4)	0~5A	±0.5%	Demand time selection setting, heat conduction root calculation method
Demand power Maximum demand power (4)	0-1kW, 0-2kW	±0.5%	Demand time selection setting, heat conduction root calculation method
Current extension measurement (3, 4)	0~5A・0~25A	±8.0%	Display unit A/kA switching extended by 5 times (R phase only)
Harmonic current (3・4)	Total RMS value: 0~1A, 0~5A Total distortion factor: 0~100%	±2.5%	Display unit A/kA switching, R phase, S phase only measurement, total RMS value, total distortion factor, each order RMS value, each order distortion factor, fifth order converted RMS value, fifth order converted distortion factor, distortion factor up to 50%
Harmonic voltage (3, 4)	Total RMS value: 0 to 150V, 0 to 300V Total distortion: 0 to 100%	±2.5%	Display unit V/kV switch, RS phase, ST phase only measurement, total effective value, total distortion factor, each order effective value, each order distortion factor, fifth order converted effective value, fifth order converted distortion factor, distortion factor up to 50%
Zero-phase voltage (3, 4) Maximum zero-phase voltage (3, 4)	EVT: AC110V/AC190.5V ZPD: AC7V/AC7.6V	±1.0%
Io (4)	AC0.8A	±1.0%	Display unit A
Ior (4)	AC0.1A	±10.0%	Display unit A

Communication specifications

method	item	Rating
RS-485 communication	Interface	RS-485
〃	Transmission distance	Less than 1km (maximum 32 cars)
〃	communication speed	1200・2400・4800・9600・19200bps
〃	Transmission cable	Shielded twisted pair wire (CPEV-S0.9φ)
〃	Termination resistor	Built-in 100Ω (terminal short-circuited to turn on termination resistor)
〃	Synchronization method	Start-stop synchronization method
〃	Communication Control Method	Polling selection method (half-duplex)
〃	Code used	ASCII
〃	Data format: Starbit	1 bit
〃	Data method: Data	7-bit
〃	Data format: Parity bit	even number
〃	Data format: Stop bit	1 bit
RS-485 communication (Modbus)	Interface	RS-485 communication (Modbus)
〃	Transmission distance	Less than 1km (maximum 32 cars)
〃	communication speed	1200・2400・4800・9600・19200bps
〃	Transmission cable	Shielded twisted pair wire (recommended: CPEV-S0.9φ)
〃	Termination resistor	Built-in 100Ω (terminal short-circuited to turn on termination resistor)
〃	Synchronization method	Start-stop synchronization method
〃	Communication Control Method	Polling selection method (half-duplex)
〃	Code used	RTU
〃	Data format: Starbit	1 bit
〃	Data method: Data	8-bit
〃	Data format: Parity bit	None or even number or odd number
〃	Data format: Stop bit	1 or 2 bits
CC-Link communication	communication protocol	CC-Link Ver1.1/Ver2 (8x mode)
〃	communication speed	156k・625k・2.5M・5M・10Mbps
〃	Number of occupied stations	Occupies one remote device station
〃	Configurable area codes	1~64
〃	Number of connectable devices	42 units (when configured with this unit only)
〃	Word area (CC-Link Ver1.1)	Send and receive 4 words each (for analog data)
〃	Word area (CC-Link Ver2)	Send and receive 32 words each (for analog data)
〃	Bit area (CC-Link Ver1.1)	32 bits for transmission and reception (for contact data)
〃	Bit area (CC-Link Ver. 2)	256 bits for transmission and reception (for contact data)
Contact status input		Same as auxiliary power supply (operates when energized for 0.3 seconds or more, continuous energization possible) Maximum input current is 6mA or less.
