HANKOKU ELECTRIC CO., Japan

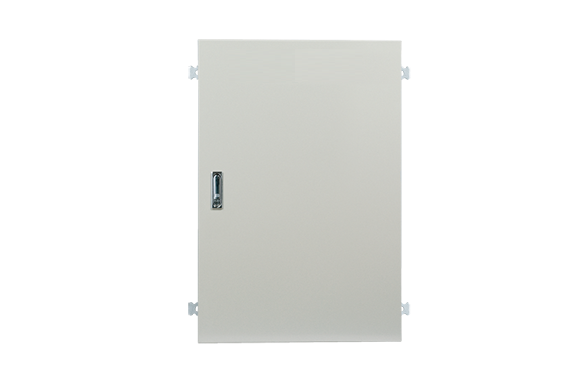

HANKOKU MG-0000A-TINF Siren Control Panel
Made in Japan
Manufacturer: HANKOKU ELECTRIC CO.,LTD.
Model: MG-0000A-TINF
Control panel for inverter siren, specially designed with shutter drive circuit and noise countermeasures
Model capable of dealing with salt damage (recommended for coastal areas)
□ Regarding radio interference
The input and output of the inverter’s main circuit contains high-order harmonic components, which may cause interference with nearby communication devices (AM radios, etc.) and sensors. Installing a noise filter can reduce interference.
□The wiring length between the control panel and the inverter siren should be 100m or less.
□ Single-phase input is also possible (depending on capacity).
□ Inverter control method: Sine wave PWM control
Model designation and options
Structure:
A: Indoor wall mounting type
WF: Outdoor wall mounting type
WP: Outdoor utility pole mounting type
Option
①H: Siren freeze prevention heater connection circuit built-in
Standard paint color
Other colours available on request

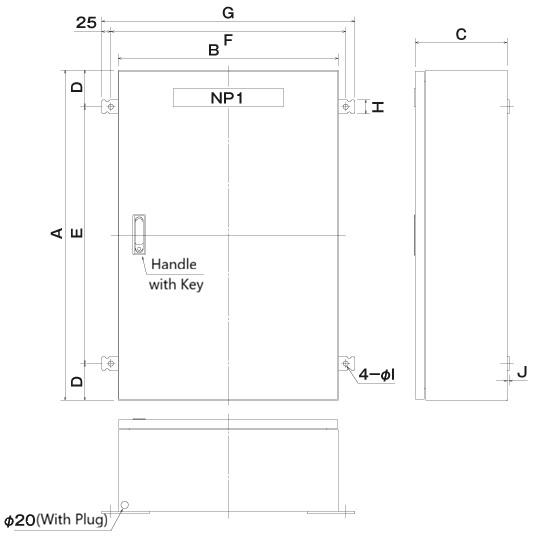

External view

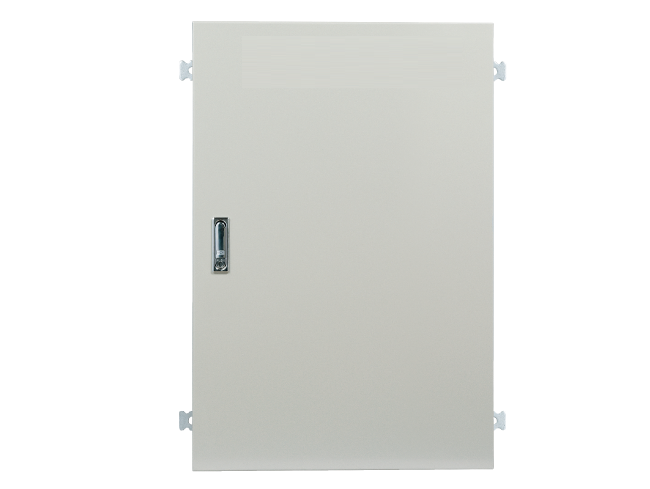

Indoor wall mount
Specification
MG-0000A-TINF
| Structure | Voltage | Model | Capacity (W) | A | B | C | D | E | F | G | H | I | J | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor wall mounting type | Three-phase AC200V | MG-400A-TINF | 400 | 900 | 600 | 250 | 100 | 700 | 640 | 690 | 38 | 14 | 6 | 49(50) |
| MG-750A-TINF | 750 | 51(52) | ||||||||||||
| MG-2200A-TINF | 2200 | 52(53) | ||||||||||||
| MG-3700A-TINF | 3700 | 54(55) | ||||||||||||
| MG-5500A-TINF | 5500 | 57(58) | ||||||||||||
| MG-7500A-TINF | 7500 | 1000 | 800 | 62(63) |
*We also carry a standard case with a length of 1,200 mm and width of 600 mm. Please contact us for details on dimensions and appearance. *Please note that specifications and dimensions may change without notice.
