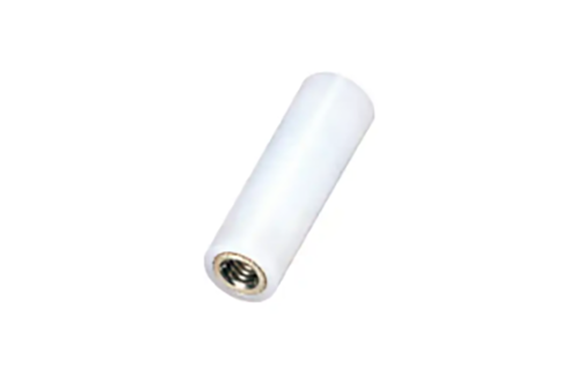

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: AMR-400E

Resin part

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Metal Part

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Tolerance of L
: ±0.1 up to L=15
, ±0.15 from L=16

Thread diameter (pitch)	L	Part Number	Pilot hole length
M4 (0.7)	10	AMR-410E	penetration
	11	AMR-411E
	12	AMR-412E
	13	AMR-413E
	14	AMR-414E
	15	AMR-415E
	16	AMR-416E
	17	AMR-417E
	18	AMR-418E
	19	AMR-419E
	20	AMR-420E
	twenty one	AMR-421E
	twenty two	AMR-422E
	twenty three	AMR-423E
	twenty four	AMR-424E
	twenty five	AMR-425E
	26	AMR-426E	8
	27	AMR-427E	8
	28	AMR-428E	8
	29	AMR-429E	8
	30	AMR-430E	8
	35	AMR-435E	8
	40	AMR-440E	8
	45	AMR-445E	8
	50	AMR-450E	8
	55	AMR-455E	8
	60	AMR-460E	8
	70	AMR-470E	8
	80	AMR-480E	8
	90	AMR-490E	8
	100	AMR-4100E	8
