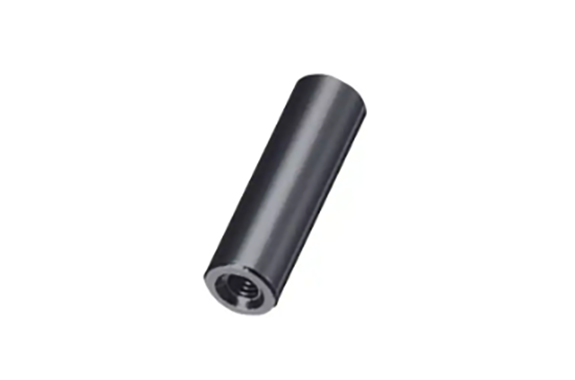

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ARL-400BE

Specification

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ARL-405BE	Fully threaded
	5.5	ARL-405.5BE
	6	ARL-406BE
	6.5	ARL-406.5BE
	7	ARL-407BE
	7.5	ARL-407.5BE
	8	ARL-408BE
	8.5	ARL-408.5BE
	9	ARL-409BE
	9.5	ARL-409.5BE
	10	ARL-410BE
	11	ARL-411BE
	12	ARL-412BE
	12.5	ARL-412.5BE
	13	ARL-413BE
	14	ARL-414BE
	15	ARL-415BE
	16	ARL-416BE
	16.5	ARL-416.5BE
	17	ARL-417BE	8
	17.5	ARL-417.5BE	8
	18	ARL-418BE	8
	19	ARL-419BE	8
	20	ARL-420BE	8
	twenty one	ARL-421BE	8
	twenty two	ARL-422BE	8
	twenty three	ARL-423BE	8
	twenty four	ARL-424BE	8
	twenty five	ARL-425BE	8
	26	ARL-426BE	8
	27	ARL-427BE	8
	28	ARL-428BE	8
	29	ARL-429BE	8
	30	ARL-430BE	8
	35	ARL-435BE	8
	40	ARL-440BE	8
	45	ARL-445BE	8
	50	ARL-450BE	8
	55	ARL-455BE	8
	60	ARL-460BE	8
