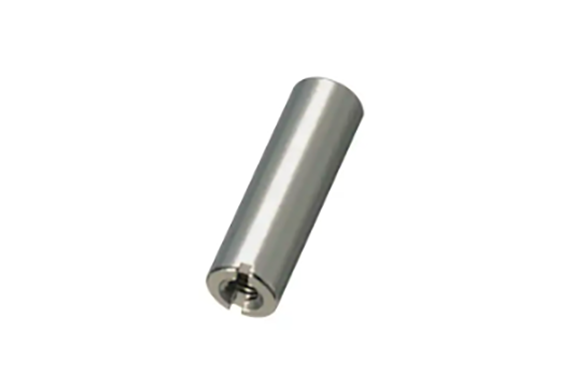

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ARL-400SKE

Specification

Material

For M2: Lead-free free-cutting aluminum (CB156)
Lead content 10ppm or less
For M2.6 to M4: Lead-free free-cutting aluminum (KS26)
Lead content 300ppm or less

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7) slotted	5	ARL-405SKE	Fully threaded
	5.5	ARL-405.5SKE
	6	ARL-406SKE
	6.5	ARL-406.5SKE
	7	ARL-407SKE
	7.5	ARL-407.5SKE
	8	ARL-408SKE
	8.5	ARL-408.5SKE
	9	ARL-409SKE
	9.5	ARL-409.5SKE
	10	ARL-410SKE
	11	ARL-411SKE
	12	ARL-412SKE
	12.5	ARL-412.5SKE
	13	ARL-413SKE
	14	ARL-414SKE
	15	ARL-415SKE
	16	ARL-416SKE
	16.5	ARL-416.5SKE
	17	ARL-417SKE	8
	17.5	ARL-417.5SKE	8
	18	ARL-418SKE	8
	19	ARL-419SKE	8
	20	ARL-420SKE	8
	twenty one	ARL-421SKE	8
	twenty two	ARL-422SKE	8
	twenty three	ARL-423SKE	8
	twenty four	ARL-424SKE	8
	twenty five	ARL-425SKE	8
	26	ARL-426SKE	8
	27	ARL-427SKE	8
	28	ARL-428SKE	8
	29	ARL-429SKE	8
	30	ARL-430SKE	8
	35	ARL-435SKE	8
	40	ARL-440SKE	8
	45	ARL-445SKE	8
	50	ARL-450SKE	8
	55	ARL-455SKE	8
	60	ARL-460SKE	8
