Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASE-2500N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

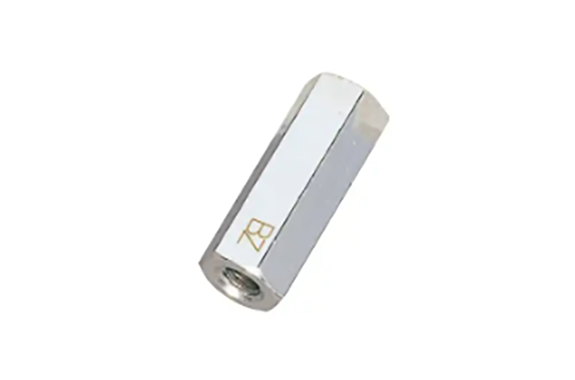

*The body displays the BZ laser mark for identification.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.5 (0.45)	6	ASE-2506N	Fully threaded
	6.5	ASE-2506.5N
	7	ASE-2507N
	7.5	ASE-2507.5N
	8	ASE-2508N
	8.5	ASE-2508.5N
	9	ASE-2509N
	9.5	ASE-2509.5N
	10	ASE-2510N
	10.5	ASE-2510.5N
	11	ASE-2511N
	11.5	ASE-2511.5N
	12	ASE-2512N
	12.5	ASE-2512.5N
	13	ASE-2513N
	13.5	ASE-2513.5N	5
	14	ASE-2514N	5
	14.5	ASE-2514.5N	5
	15	ASE-2515N	5
	15.5	ASE-2515.5N	5
	16	ASE-2516N	5
	16.5	ASE-2516.5N	5
	17	ASE-2517N	5
	17.5	ASE-2517.5N	5
	18	ASE-2518N	5
	18.5	ASE-2518.5N	5
	19	ASE-2519N	5
	19.5	ASE-2519.5N	5
	20	ASE-2520N	5
	twenty one	ASE-2521N	5
	twenty two	ASE-2522N	5
	twenty three	ASE-2523N	5
	twenty four	ASE-2524N	5
	twenty five	ASE-2525N	5
	26	ASE-2526N	5
	27	ASE-2527N	5
	28	ASE-2528N	5
	29	ASE-2529N	5
	30	ASE-2530N	5
