Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASE-2600N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

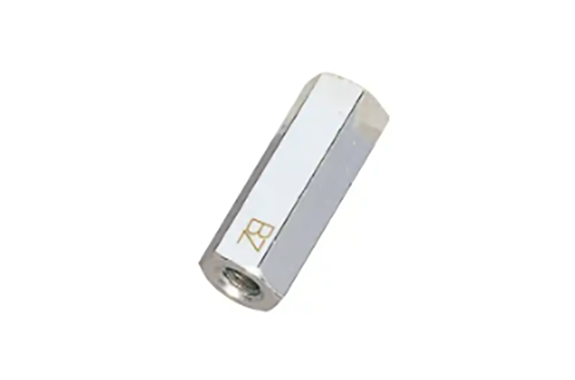

*The body displays the BZ laser mark for identification.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.6 (0.45)	3	ASE-2603N	Fully threaded
	3.5	ASE-2603.5N
	4	ASE-2604N
	4.5	ASE-2604.5N
	5	ASE-2605N
	5.5	ASE-2605.5N
	6	ASE-2606N
	6.5	ASE-2606.5N
	7	ASE-2607N
	7.5	ASE-2607.5N
	8	ASE-2608N
	8.5	ASE-2608.5N
	9	ASE-2609N
	9.5	ASE-2609.5N
	10	ASE-2610N
	11	ASE-2611N
	12	ASE-2612N
	12.5	ASE-2612.5N
	13	ASE-2613N
	14	ASE-2614N	5
	15	ASE-2615N	5
	16	ASE-2616N	5
	16.5	ASE-2616.5N	5
	17	ASE-2617N	5
	17.5	ASE-2617.5N	5
	18	ASE-2618N	5
	19	ASE-2619N	5
	20	ASE-2620N	5
	twenty one	ASE-2621N	5
	twenty two	ASE-2622N	5
	twenty three	ASE-2623N	5
	twenty four	ASE-2624N	5
	twenty five	ASE-2625N	5
	26	ASE-2626N	5
	27	ASE-2627N	5
	28	ASE-2628N	5
	29	ASE-2629N	5
	30	ASE-2630N	5
