Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASE-400N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

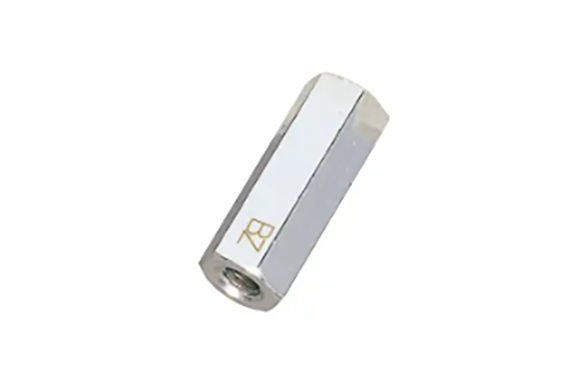

*The body displays the BZ laser mark for identification.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to L=100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ASE-405N	Fully threaded
	6	ASE-406N
	7	ASE-407N
	8	ASE-408N
	9	ASE-409N
	10	ASE-410N
	11	ASE-411N
	12	ASE-412N
	13	ASE-413N
	14	ASE-414N
	15	ASE-415N
	16	ASE-416N
	17	ASE-417N
	18	ASE-418N
	19	ASE-419N
	20	ASE-420N
	twenty one	ASE-421N	8
	twenty two	ASE-422N	8
	twenty three	ASE-423N	8
	twenty four	ASE-424N	8
	twenty five	ASE-425N	8
	26	ASE-426N	8
	27	ASE-427N	8
	28	ASE-428N	8
	29	ASE-429N	8
	30	ASE-430N	8
	31	ASE-431N	8
	32	ASE-432N	8
	33	ASE-433N	8
	34	ASE-434N	8
	35	ASE-435N	8
	36	ASE-436N	8
	37	ASE-437N	8
	38	ASE-438N	8
	39	ASE-439N	8
	40	ASE-440N	8
	45	ASE-445N	8
	50	ASE-450N	8
	55	ASE-455N	8
	60	ASE-460N	8
	65	ASE-465N	8
	70	ASE-470N	8
	75	ASE-475N	8
	80	ASE-480N	8
	85	ASE-485N	8
	90	ASE-490N	8
	95	ASE-495N	8
	100	ASE-4100N	8
	110	ASE-4110N	8
	120	ASE-4120N	8
	130	ASE-4130N	8
	140	ASE-4140N	8
	150	ASE-4150N	8
