Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-2000H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

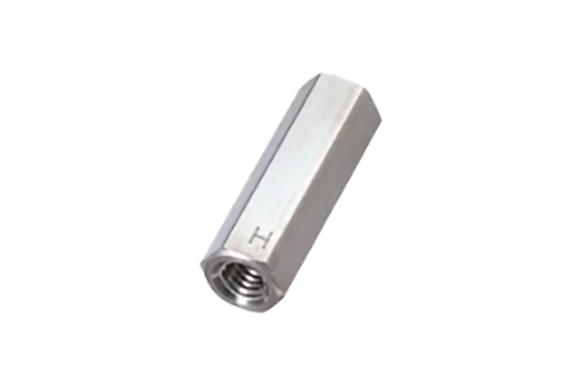

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2 (0.4)	3	ASU-2003H	Fully threaded
	3.5	ASU-2003.5H
	4	ASU-2004H
	4.5	ASU-2004.5H
	5	ASU-2005H
	5.5	ASU-2005.5H
	6	ASU-2006H
	6.5	ASU-2006.5H
	7	ASU-2007H
	7.5	ASU-2007.5H
	8	ASU-2008H
	8.5	ASU-2008.5H
	9	ASU-2009H
	9.5	ASU-2009.5H
	10	ASU-2010H
	11	ASU-2011H	5
	12	ASU-2012H	5
	12.5	ASU-2012.5H	5
	13	ASU-2013H	5
	14	ASU-2014H	5
	15	ASU-2015H	5
	16	ASU-2016H	5
	16.5	ASU-2016.5H	5
	17	ASU-2017H	5
	17.5	ASU-2017.5H	5
	18	ASU-2018H	5
	19	ASU-2019H	5
	20	ASU-2020H	5
	twenty one	ASU-2021H	5
	twenty two	ASU-2022H	5
	twenty three	ASU-2023H	5
	twenty four	ASU-2024H	5
	twenty five	ASU-2025H	5
	26	ASU-2026H	5
	27	ASU-2027H	5
	28	ASU-2028H	5
	29	ASU-2029H	5
	30	ASU-2030H	5
