Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-2600H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

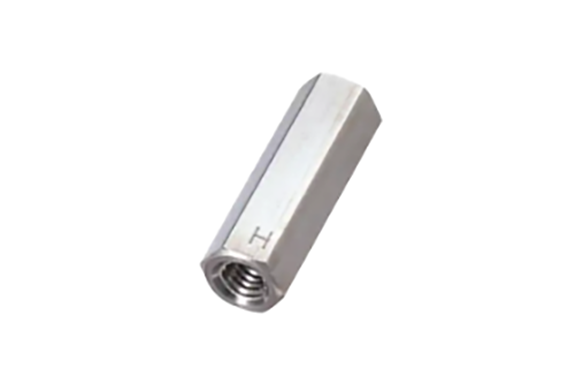

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.6 (0.45)	3	ASU-2603H	Fully threaded
	3.5	ASU-2603.5H
	4	ASU-2604H
	4.5	ASU-2604.5H
	5	ASU-2605H
	5.5	ASU-2605.5H
	6	ASU-2606H
	6.5	ASU-2606.5H
	7	ASU-2607H
	7.5	ASU-2607.5H
	8	ASU-2608H
	8.5	ASU-2608.5H
	9	ASU-2609H
	9.5	ASU-2609.5H
	10	ASU-2610H
	11	ASU-2611H	5
	12	ASU-2612H	5
	12.5	ASU-2612.5H	5
	13	ASU-2613H	5
	14	ASU-2614H	5
	15	ASU-2615H	5
	16	ASU-2616H	5
	16.5	ASU-2616.5H	5
	17	ASU-2617H	5
	17.5	ASU-2617.5H	5
	18	ASU-2618H	5
	19	ASU-2619H	5
	20	ASU-2620H	5
	twenty one	ASU-2621H	5
	twenty two	ASU-2622H	5
	twenty three	ASU-2623H	5
	twenty four	ASU-2624H	5
	twenty five	ASU-2625H	5
	26	ASU-2626H	5
	27	ASU-2627H	5
	28	ASU-2628H	5
	29	ASU-2629H	5
	30	ASU-2630H	5
