Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-400U

Specification

Material

Stainless steel (SUS316)

process

Degreasing

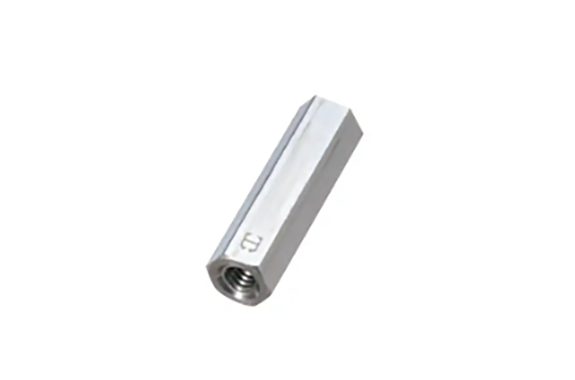

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved on the spacer body.

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ASU-405U	Fully threaded
	6	ASU-406U
	7	ASU-407U
	8	ASU-408U
	9	ASU-409U
	10	ASU-410U
	11	ASU-411U
	12	ASU-412U
	13	ASU-413U
	14	ASU-414U
	15	ASU-415U
	16	ASU-416U
	17	ASU-417U	8
	18	ASU-418U	8
	19	ASU-419U	8
	20	ASU-420U	8
	twenty one	ASU-421U	8
	twenty two	ASU-422U	8
	twenty three	ASU-423U	8
	twenty four	ASU-424U	8
	twenty five	ASU-425U	8
	26	ASU-426U	8
	27	ASU-427U	8
	28	ASU-428U	8
	29	ASU-429U	8
	30	ASU-430U	8
	35	ASU-435U	8
	40	ASU-440U	8
	45	ASU-445U	8
	50	ASU-450U	8
	55	ASU-455U	8
	60	ASU-460U	8
	65	ASU-465U	8
	70	ASU-470U	8
	75	ASU-475U	8
	80	ASU-480U	8
	85	ASU-485U	8
	90	ASU-490U	8
	95	ASU-495U	8
	100	ASU-4100U	8
