Manufacturer: Hirosugi Instruments Co., Ltd.

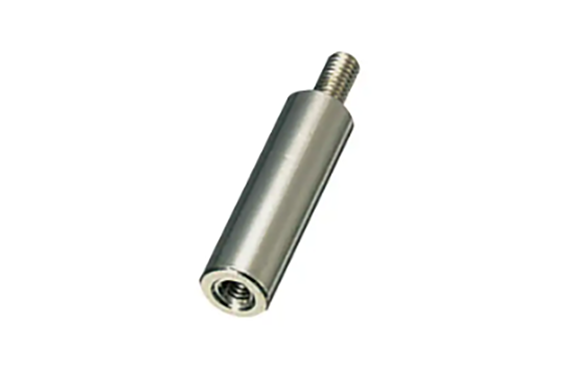

Model: BRL-1700KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M1.7 (0.35)	4	BRL-1704KE	2.5
	4.5	BRL-1704.5KE	2.5
	5	BRL-1705KE	3
	5.5	BRL-1705.5KE	3
	6	BRL-1706KE	4
	6.5	BRL-1706.5KE	4
	7	BRL-1707KE	5
	7.5	BRL-1707.5KE	5
	8	BRL-1708KE	5
	8.5	BRL-1708.5KE	5
	9	BRL-1709KE	5
	9.5	BRL-1709.5KE	5
	10	BRL-1710KE	5
	11	BRL-1711KE	5
	12	BRL-1712KE	5
	12.5	BRL-1712.5KE	5
	13	BRL-1713KE	5
	14	BRL-1714KE	5
	15	BRL-1715KE	5
	16	BRL-1716KE	5
	16.5	BRL-1716.5KE	5
	17	BRL-1717KE	5
	17.5	BRL-1717.5KE	5
	18	BRL-1718KE	5
	19	BRL-1719KE	5
	20	BRL-1720KE	5
	twenty one	BRL-1721KE	5
	twenty two	BRL-1722KE	5
	twenty three	BRL-1723KE	5
	twenty four	BRL-1724KE	5
	twenty five	BRL-1725KE	5
	26	BRL-1726KE	5
	27	BRL-1727KE	5
	28	BRL-1728KE	5
	29	BRL-1729KE	5
	30	BRL-1730KE	5
