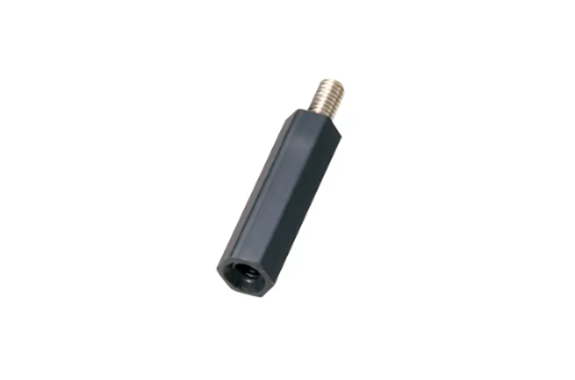

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BS-400BE

Main unit

Material

Duracon (POM)

color

black

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15
, ±0.2 from L=16 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number
M4 (0.7)	8	BS-408BE
	9	BS-409BE
	10	BS-410BE
	11	BS-411BE
	12	BS-412BE
	13	BS-413BE
	14	BS-414BE
	15	BS-415BE
	16	BS-416BE
	17	BS-417BE
	18	BS-418BE
	19	BS-419BE
	20	BS-420BE
	twenty one	BS-421BE
	twenty two	BS-422BE
	twenty three	BS-423BE
	twenty four	BS-424BE
	twenty five	BS-425BE
	26	BS-426BE
	27	BS-427BE
	28	BS-428BE
	29	BS-429BE
	30	BS-430BE
	31	BS-431BE
	32	BS-432BE
	33	BS-433BE
	34	BS-434BE
	35	BS-435BE
	36	BS-436BE
	37	BS-437BE
	38	BS-438BE
	39	BS-439BE
	40	BS-440BE
	41	BS-441BE
	42	BS-442BE
	43	BS-443BE
	44	BS-444BE
	45	BS-445BE
	46	BS-446BE
	47	BS-447BE
	48	BS-448BE
	49	BS-449BE
	50	BS-450BE
	51	BS-451BE
	52	BS-452BE
	53	BS-453BE
	54	BS-454BE
	55	BS-455BE
	56	BS-456BE
	57	BS-457BE
	58	BS-458BE
	59	BS-459BE
	60	BS-460BE
	62	BS-462BE
	64	BS-464BE
	65	BS-465BE
	66	BS-466BE
	68	BS-468BE
	70	BS-470BE
	72	BS-472BE
	74	BS-474BE
	75	BS-475BE
	76	BS-476BE
	78	BS-478BE
80	BS-480BE
85	BS-485BE
90	BS-490BE
95	BS-495BE
100	BS-4100BE
110	BS-4110BE
120	BS-4120BE
130	BS-4130BE
140	BS-4140BE
150	BS-4150BE
