Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BS-500E

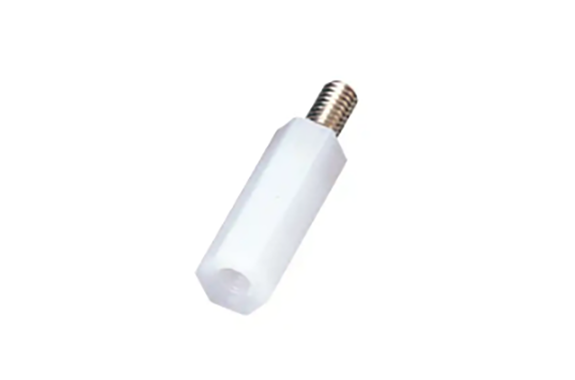

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
L=15±0.1,
L=18 to 100 ±0.2,
L=110 and above ±0.3

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	15	BS-515E	8.3
	18	BS-518E	11.3
	20	BS-520E	13.3
	twenty five	BS-525E	18.3
	30	BS-530E	23.3
	35	BS-535E	28.3
	40	BS-540E	33.3
	45	BS-545E	38.3
	50	BS-550E	43.3
	55	BS-555E	48.3
	60	BS-560E	53.3
	65	BS-565E	10
	70	BS-570E	10
	75	BS-575E	10
	80	BS-580E	10
	85	BS-585E	10
	90	BS-590E	10
	95	BS-595E	10
	100	BS-5100E	10
	110	BS-5110E	10
	120	BS-5120E	10
	125	BS-5125E	10
	130	BS-5130E	10
	140	BS-5140E	10
	150	BS-5150E	10
