Manufacturer: Hirosugi Instruments Co., Ltd.

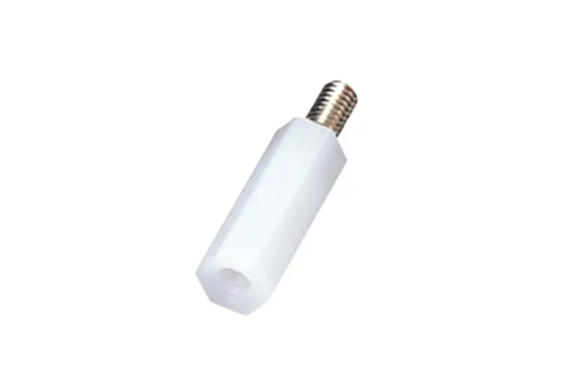

Model: BS-E

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15.5,
±0.2 from L=16,
ℓ dimension:
3.2 up to L=6 to 7.5,
L=8 or more: 4

Thread diameter (pitch)	L	Part Number
M3 (0.5)	6	BS-306E
	6.5	BS-306.5E
	7	BS-307E
	7.5	BS-307.5E
	8	BS-308E
	8.5	BS-308.5E
	9	BS-309E
	9.5	BS-309.5E
	10	BS-310E
	10.5	BS-310.5E
	11	BS-311E
	11.5	BS-311.5E
	12	BS-312E
	12.5	BS-312.5E
	13	BS-313E
	13.5	BS-313.5E
	14	BS-314E
	14.5	BS-314.5E
	15	BS-315E
	15.5	BS-315.5E
	16	BS-316E
	16.5	BS-316.5E
	17	BS-317E
	17.5	BS-317.5E
	18	BS-318E
	18.5	BS-318.5E
	19	BS-319E
	19.5	BS-319.5E
	20	BS-320E
	twenty one	BS-321E
	twenty two	BS-322E
	twenty three	BS-323E
	twenty four	BS-324E
	twenty five	BS-325E
	26	BS-326E
	27	BS-327E
	28	BS-328E
	29	BS-329E
	30	BS-330E
	31	BS-331E
	32	BS-332E
	33	BS-333E
	34	BS-334E
	35	BS-335E
	36	BS-336E
	37	BS-337E
	38	BS-338E
	39	BS-339E
	40	BS-340E
	45	BS-345E
	50	BS-350E
	55	BS-355E
	60	BS-360E
