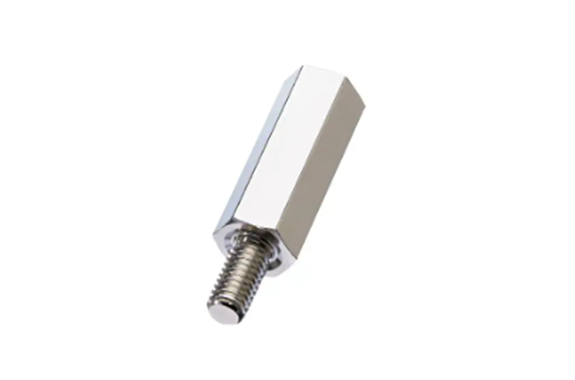

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSB-400DE

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

Process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=61 to L=100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	4	BSB-304DE	2.5
	6	BSB-406DE	3.5
	6.5	BSB-406.5DE	3.5
	7	BSB-407DE	4.5
	7.5	BSB-407.5DE	4.5
	8	BSB-408DE	5.5
	8.5	BSB-408.5DE	5.5
	9	BSB-409DE	6
	9.5	BSB-409.5DE	6
	10	BSB-410DE	7
	10.5	BSB-410.5DE	7
	11	BSB-411DE	8
	11.5	BSB-411.5DE	8
	12	BSB-412DE	8
	12.5	BSB-412.5DE	8
	13	BSB-413DE	8
	13.5	BSB-413.5DE	8
	14	BSB-414DE	8
	14.5	BSB-414.5DE	8
	15	BSB-415DE	8
	15.5	BSB-415.5DE	8
	16	BSB-416DE	8
	16.5	BSB-416.5DE	8
	17	BSB-417DE	8
	17.5	BSB-417.5DE	8
	18	BSB-418DE	8
	18.5	BSB-418.5DE	8
	19	BSB-419DE	8
	19.5	BSB-419.5DE	8
	20	BSB-420DE	8
	20.5	BSB-420.5DE	8
	twenty one	BSB-421DE	8
	21.5	BSB-421.5DE	8
	twenty two	BSB-422DE	8
	22.5	BSB-422.5DE	8
	twenty three	BSB-423DE	8
	23.5	BSB-423.5DE	8
	twenty four	BSB-424DE	8
	24.5	BSB-424.5DE	8
	twenty five	BSB-425DE	8
	25.5	BSB-425.5DE	8
	26	BSB-426DE	8
	26.5	BSB-426.5DE	8
	27	BSB-427DE	8
	27.5	BSB-427.5DE	8
	28	BSB-428DE	8
	28.5	BSB-428.5DE	8
	29	BSB-429DE	8
	29.5	BSB-429.5DE	8
	30	BSB-430DE	8
	31	BSB-431DE	8
	32	BSB-432DE	8
	33	BSB-433DE	8
	34	BSB-434DE	8
	35	BSB-435DE	8
	36	BSB-436DE	8
	37	BSB-437DE	8
	38	BSB-438DE	8
	39	BSB-439DE	8
	40	BSB-440DE	8
	41	BSB-441DE	8
	42	BSB-442DE	8
	43	BSB-443DE	8
	44	BSB-444DE	8
45	BSB-445DE	8
46	BSB-446DE	8
47	BSB-447DE	8
48	BSB-448DE	8
49	BSB-449DE	8
50	BSB-450DE	8
51	BSB-451DE	8
52	BSB-452DE	8
53	BSB-453DE	8
54	BSB-454DE	8
55	BSB-455DE	8
56	BSB-456DE	8
57	BSB-457DE	8
58	BSB-458DE	8
59	BSB-459DE	8
60	BSB-460DE	8
61	BSB-461DE	8
62	BSB-462DE	8
63	BSB-463DE	8
64	BSB-464DE	8
65	BSB-465DE	8
66	BSB-466DE	8
67	BSB-467DE	8
68	BSB-468DE	8
69	BSB-469DE	8
70	BSB-470DE	8
71	BSB-471DE	8
72	BSB-472DE	8
73	BSB-473DE	8
74	BSB-474DE	8
75	BSB-475DE	8
76	BSB-476DE	8
77	BSB-477DE	8
78	BSB-478DE	8
79	BSB-479DE	8
80	BSB-480DE	8
81	BSB-481DE	8
82	BSB-482DE	8
83	BSB-483DE	8
84	BSB-484DE	8
85	BSB-485DE	8
86	BSB-486DE	8
87	BSB-487DE	8
88	BSB-488DE	8
89	BSB-489DE	8
90	BSB-490DE	8
91	BSB-491DE	8
92	BSB-492DE	8
93	BSB-493DE	8
94	BSB-494DE	8
95	BSB-495DE	8
96	BSB-496DE	8
97	BSB-497DE	8
98	BSB-498DE	8
99	BSB-499DE	8
100	BSB-4100DE	8
110	BSB-4110DE	8
120	BSB-4120DE	8
130	BSB-4130DE	8
140	BSB-4140DE	8
150	BSB-4150DE	8
