Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSE-500N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

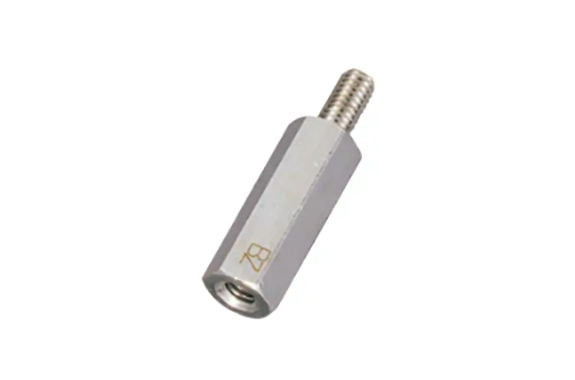

*The body displays the BZ laser mark for identification.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSE-508N	5
	10	BSE-510N	7
	12	BSE-512N	9
	15	BSE-515N	10
	18	BSE-518N	10
	20	BSE-520N	10
	twenty five	BSE-525N	10
	30	BSE-530N	10
	35	BSE-535N	10
	40	BSE-540N	10
	45	BSE-545N	10
	50	BSE-550N	10
	55	BSE-555N	10
	60	BSE-560N	10
	65	BSE-565N	10
	70	BSE-570N	10
	75	BSE-575N	10
	80	BSE-580N	10
	85	BSE-585N	10
	90	BSE-590N	10
	95	BSE-595N	10
	100	BSE-5100N	10
	110	BSE-5110N	10
	120	BSE-5120N	10
	125	BSE-5125N	10
	130	BSE-5130N	10
	140	BSE-5140N	10
	150	BSE-5150N	10
