Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-2500H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

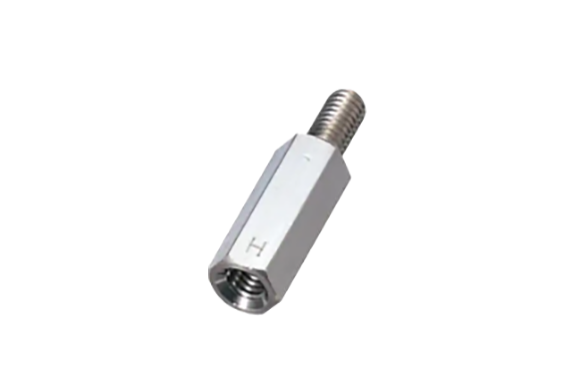

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.5 (0.45)	4	BSU-2504H	2.5
	4.5	BSU-2504.5H	2.5
	5	BSU-2505H	3
	5.5	BSU-2505.5H	3.5
	6	BSU-2506H	4
	6.5	BSU-2506.5H	4.5
	7	BSU-2507H	5
	7.5	BSU-2507.5H	5
	8	BSU-2508H	5
	8.5	BSU-2508.5H	5
	9	BSU-2509H	5
	9.5	BSU-2509.5H	5
	10	BSU-2510H	5
	11	BSU-2511H	5
	12	BSU-2512H	5
	12.5	BSU-2512.5H	5
	13	BSU-2513H	5
	14	BSU-2514H	5
	15	BSU-2515H	5
	16	BSU-2516H	5
	16.5	BSU-2516.5H	5
	17	BSU-2517H	5
	17.5	BSU-2517.5H	5
	18	BSU-2518H	5
	19	BSU-2519H	5
	20	BSU-2520H	5
	twenty one	BSU-2521H	5
	twenty two	BSU-2522H	5
	twenty three	BSU-2523H	5
	twenty four	BSU-2524H	5
	twenty five	BSU-2525H	5
	26	BSU-2526H	5
	27	BSU-2527H	5
	28	BSU-2528H	5
	29	BSU-2529H	5
	30	BSU-2530H	5
