Manufacturer: Hirosugi Instruments Co., Ltd.

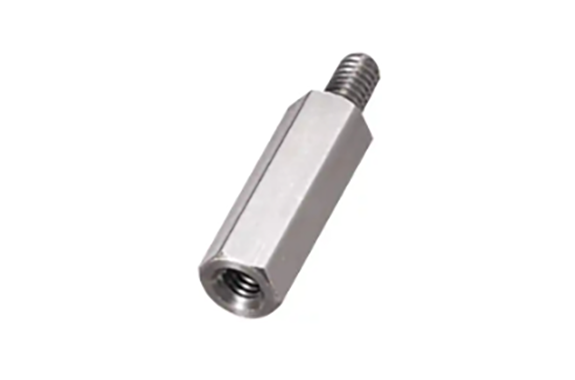

Model: BSU-300-6

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BSU-304-6	2
	4.5	BSU-304.5-6	2
	5	BSU-305-6	3
	5.5	BSU-305.5-6	3
	6	BSU-306-6	4
	6.5	BSU-306.5-6	4
	7	BSU-307-6	5
	7.5	BSU-307.5-6	5
	8	BSU-308-6	6
	8.5	BSU-308.5-6	6
	9	BSU-309-6	6
	9.5	BSU-309.5-6	6
	10	BSU-310-6	6
	10.5	BSU-310.5-6	6
	11	BSU-311-6	6
	11.5	BSU-311.5-6	6
	12	BSU-312-6	6
	12.5	BSU-312.5-6	6
	13	BSU-313-6	6
	13.5	BSU-313.5-6	6
	14	BSU-314-6	6
	14.5	BSU-314.5-6	6
	15	BSU-315-6	6
	15.5	BSU-315.5-6	6
	16	BSU-316-6	6
	16.5	BSU-316.5-6	6
	17	BSU-317-6	6
	17.5	BSU-317.5-6	6
	18	BSU-318-6	6
	18.5	BSU-318.5-6	6
	19	BSU-319-6	6
	19.5	BSU-319.5-6	6
	20	BSU-320-6	6
	twenty one	BSU-321-6	6
	twenty two	BSU-322-6	6
	twenty three	BSU-323-6	6
	twenty four	BSU-324-6	6
	twenty five	BSU-325-6	6
	26	BSU-326-6	6
	27	BSU-327-6	6
	28	BSU-328-6	6
	29	BSU-329-6	6
	30	BSU-330-6	6
	35	BSU-335-6	6
	40	BSU-340-6	6
	45	BSU-345-6	6
	50	BSU-350-6	6
	55	BSU-355-6	6
	60	BSU-360-6	6
	65	BSU-365-6	6
	70	BSU-370-6	6
	75	BSU-375-6	6
	80	BSU-380-6	6
	85	BSU-385-6	6
	90	BSU-390-6	6
	95	BSU-395-6	6
	100	BSU-3100-6	6
