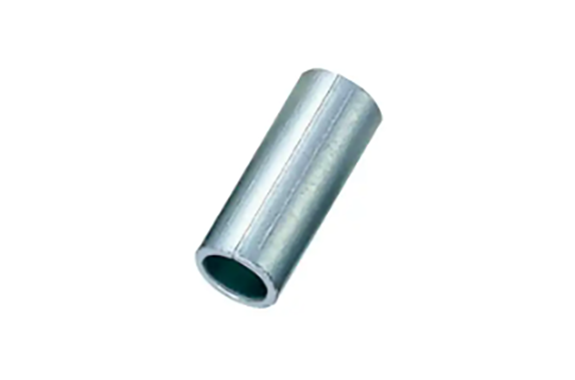

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CF-2600ZE

Specification

Material

Steel plate (SPCC)

process

Trivalent chromium chromate treatment

Exterior drawings

Tolerance of L
: ±0.05 up to L=10
, ±0.1 from L=11

Screw diameter	L	Part Number
For M2.6	1.6	CF-2601.6ZE
	2	CF-2602ZE
	2.5	CF-2602.5ZE
	3	CF-2603ZE
	3.5	CF-2603.5ZE
	4	CF-2604ZE
	4.5	CF-2604.5ZE
	5	CF-2605ZE
	5.5	CF-2605.5ZE
	6	CF-2606ZE
	6.5	CF-2606.5ZE
	7	CF-2607ZE
	8	CF-2608ZE
	9	CF-2609ZE
	10	CF-2610ZE
	11	CF-2611ZE
	12	CF-2612ZE
	13	CF-2613ZE
	14	CF-2614ZE
	15	CF-2615ZE
