Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-2600U

Specification

Material

Stainless steel (SUS316)

Process

Degreasing

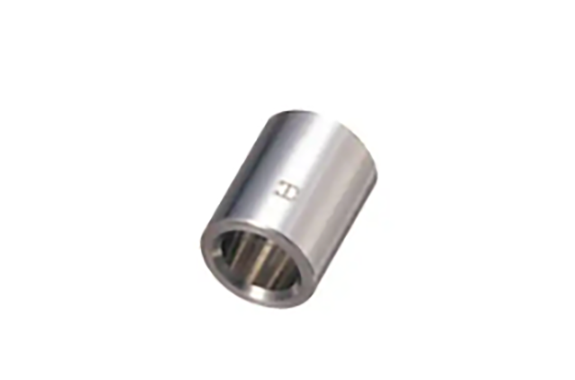

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body.

Exterior drawings

Screw diameter	L	Part Number
M2.6	1	CU-2601U
	1.5	CU-2601.5U
	2	CU-2602U
	2.5	CU-2602.5U
	3	CU-2603U
	3.5	CU-2603.5U
	4	CU-2604U
	4.5	CU-2604.5U
	5	CU-2605U
	5.5	CU-2605.5U
	6	CU-2606U
	6.5	CU-2606.5U
	7	CU-2607U
	7.5	CU-2607.5U
	8	CU-2608U
	8.5	CU-2608.5U
	9	CU-2609U
	9.5	CU-2609.5U
	10	CU-2610U
	11	CU-2611U
	12	CU-2612U
	13	CU-2613U
	14	CU-2614U
	15	CU-2615U
	16	CU-2616U
	17	CU-2617U
	18	CU-2618U
	19	CU-2619U
	20	CU-2620U
