Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-300PU

Specification

Material

Stainless steel (SUS316)

process

Degreasing

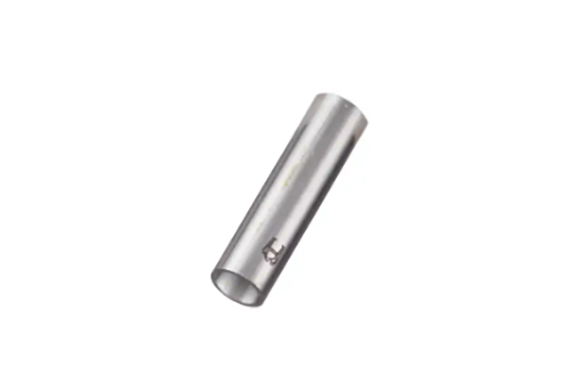

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body .

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 from L=35 to L=40,
±0.3 from L=45

Screw diameter	L	Part Number
M3	2	CU-302PU
	2.5	CU-302.5PU
	3	CU-303PU
	3.5	CU-303.5PU
	4	CU-304PU
	4.5	CU-304.5PU
	5	CU-305PU
	5.5	CU-305.5PU
	6	CU-306PU
	6.5	CU-306.5PU
	7	CU-307PU
	7.5	CU-307.5PU
	8	CU-308PU
	8.5	CU-308.5PU
	9	CU-309PU
	9.5	CU-309.5PU
	10	CU-310PU
	11	CU-311PU
	12	CU-312PU
	13	CU-313PU
	14	CU-314PU
	15	CU-315PU
	16	CU-316PU
	17	CU-317PU
	18	CU-318PU
	19	CU-319PU
	20	CU-320PU
	twenty one	CU-321PU
	twenty two	CU-322PU
	twenty three	CU-323PU
	twenty four	CU-324PU
	twenty five	CU-325PU
	26	CU-326PU
	27	CU-327PU
	28	CU-328PU
	29	CU-329PU
	30	CU-330PU
	35	CU-335PU
	40	CU-340PU
	45	CU-345PU
	50	CU-350PU
