Hirosugi
Hirosugi CU-800PH Stainless Steel 304 Spacer (hollow pipe)
Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-800PH
Specification
- Material
- Stainless steel (SUS304)
- process
- Degreasing

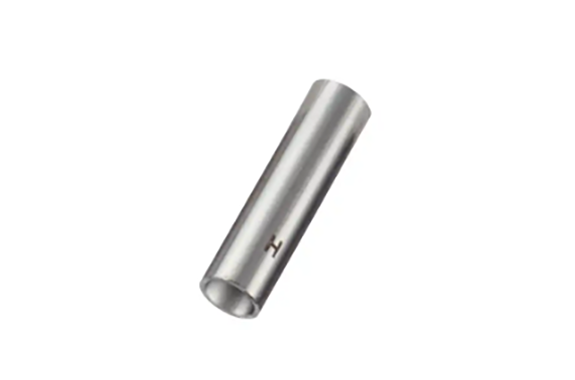

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.
Exterior drawings
| Screw diameter | L | Part Number |
M8 | 5 | CU-805PH |
| 6 | CU-806PH | |
| 7 | CU-807PH | |
| 8 | CU-808PH | |
| 9 | CU-809PH | |
| 10 | CU-810PH | |
| 11 | CU-811PH | |
| 12 | CU-812PH | |
| 13 | CU-813PH | |
| 14 | CU-814PH | |
| 15 | CU-815PH | |
| 16 | CU-816PH | |
| 17 | CU-817PH | |
| 18 | CU-818PH | |
| 19 | CU-819PH | |
| 20 | CU-820PH | |
| twenty two | CU-822PH | |
| twenty five | CU-825PH | |
| 28 | CU-828PH | |
| 30 | CU-830PH | |
| 35 | CU-835PH | |
| 40 | CU-840PH | |
| 45 | CU-845PH | |
| 50 | CU-850PH |
Related Products
-
Hirosugi DSE-0000EN D-Sub Connector Mounting Spacer (Lead-Free Brass – Nickel Plated)
-
Hirosugi LSU-400-10 Stainless Steel Spacer (hexagonal) Long Male Thread
-
Hirosugi BRB-2600E Brass Spacer (Round)
-
Hirosugi BSB-300DMBE Brass Spacer (Hexagonal) No Incomplete Threads
-
Hirosugi BSB-500E Brass Spacer (hexagonal)
-
Hirosugi CB-2000CE Brass Spacer (Hollow Round) / CB-CE
L tolerance
: ±0.1 up to L=30
, ±0.2 up to L=35-40,
±0.3 up to L=45-50
